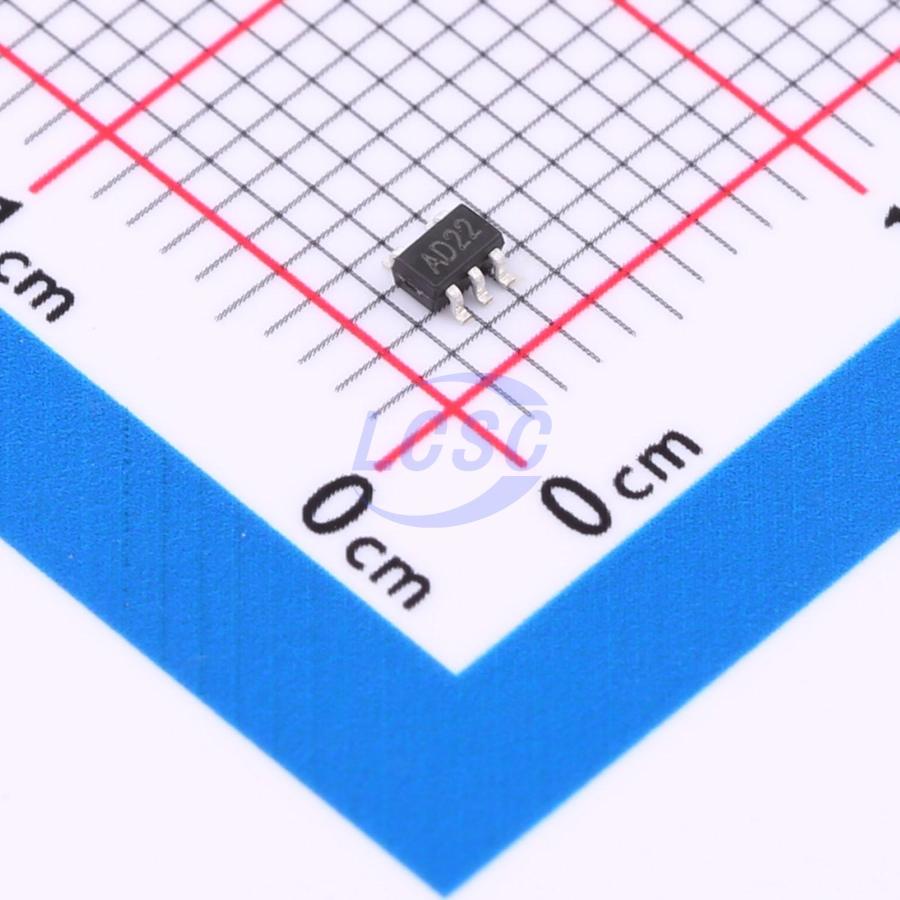

SN74LVC1G07DC(LX)
1.65V~5.5V 1 1 9.5ns@3V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
Single Buffer (Open-drain)
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LVC1G07DC(LX)
- Store part #
- C22469942
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,770 in stock
#C22469942
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.19 | ₹51.90 |
| 100+ | ₹4.10 | ₹410.00 |
| 300+ | ₹3.56 | ₹1,068.00 |
| 3,000+ | ₹3.15 | ₹9,450.00 |
| 6,000+ | ₹2.83 | ₹16,980.00 |
| 9,000+ | ₹2.66 | ₹23,940.00 |
10 × ₹5.19
₹51.90
excl. GST
₹61.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G07DC(LX)
₹51.90 for 10 + GST
Specifications
- Function
- Level shifting
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 9.5ns@3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The SN74LVC1G07 provides the non-inverting buffer. The output of this device is an open drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment.
Key features
- Wide supply voltage range from 1.65V to 5.5V
- 5V tolerant inputs for interfacing with 5V logic
- -24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Specified from -40°C to +125°C
- Packaging information: SOT23-5/SOT353/DFN4/SOT553
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G34DC(LX)#C22469930lingxingic · SOT-353 | lingxingic | SOT-353 | 2,380 | ₹6.13 · 2,380 in stock | View |
 | SN74LVC1G17DC(LX)#C22469944lingxingic · SOT-353 | lingxingic | SOT-353 | 2,120 | ₹6.40 · 2,120 in stock | View |
 | SN74LV1T125DC(LX)#C22469965lingxingic · SOT-353 | lingxingic | SOT-353 | 170 | ₹9.76 · 170 in stock | View |
