TECH PUBLIC

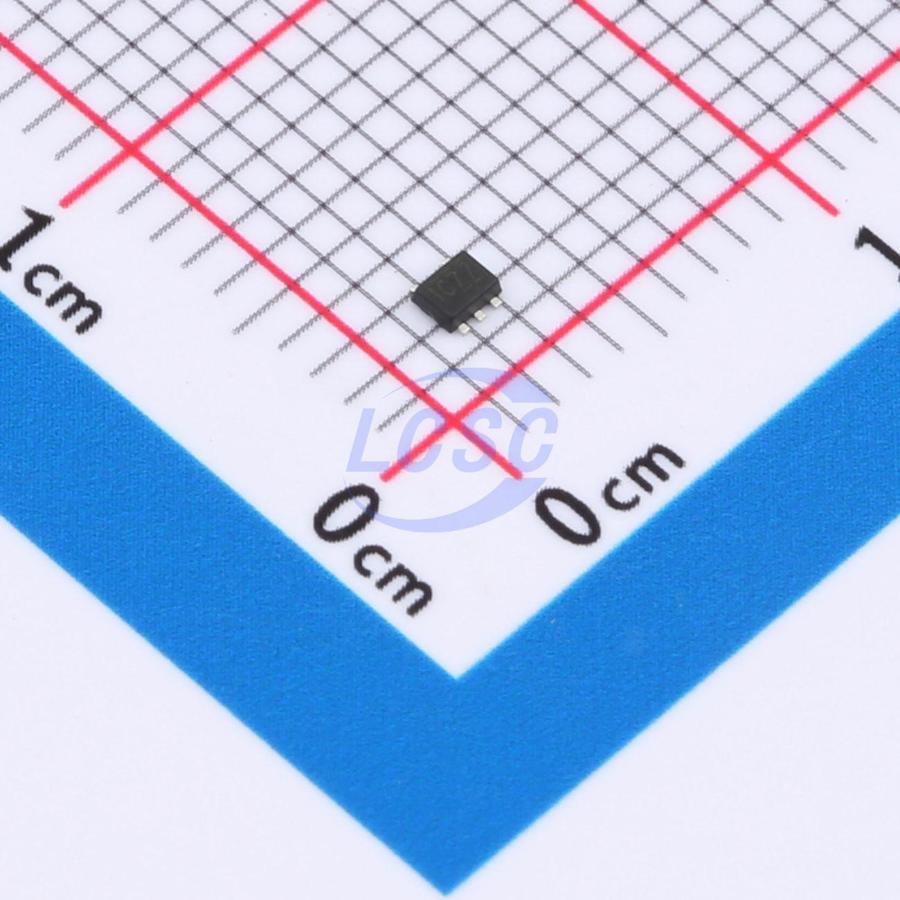

SN74LVC1G17DRLR

Schmitt trigger 1.65V~5.5V 8.2ns@3.3V,15pF 10uA SOT-553 Gates and Inverters

SOT-553RoHSActive

SINGLE SCHMITT-TRIGGER BUFFER

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74LVC1G17DRLR
Store part #: C19829621
Package / case: SOT-553
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,860 in stock

#C19829621

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹6.58	₹65.80
100+	₹5.72	₹572.00
300+	₹5.28	₹1,584.00
1,000+	₹4.95	₹4,950.00
4,000+	₹4.68	₹18,720.00
8,000+	₹4.56	₹36,480.00

Quantity (min 10, multiples of 10)

10 × ₹6.58

₹65.80

excl. GST

₹77.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74LVC1G17DRLR

₹65.80 for 10 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 8.2ns@3.3V,15pF
Output Logic Level - Low: 550mV
Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2.4V
Quiescent Current(Iq): 10uA
Number of Channels: 1;1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.022 g

Overview

The SN74LVC1G17 is a single Schmitt-trigger buffer with the function Y = A. Due to the Schmitt-trigger action at the input, this device has different input threshold levels for rising-edge signals (V_T+) and falling-edge signals (V_T-). The device incorporates a power-off protection circuit to prevent damage during power-down conditions.
