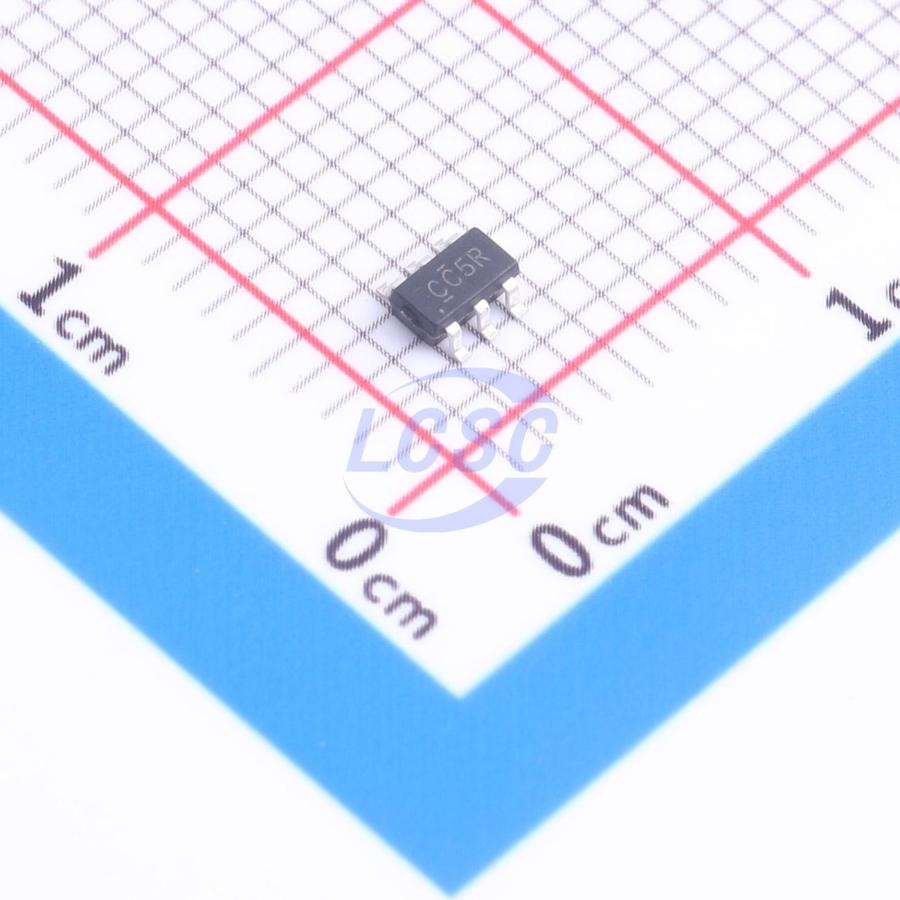

SN74LVC1G3157DBVR-MS
StandardCMOS 1.65V~5.5V 1uA SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
Advanced CMOS Analog Switch
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SN74LVC1G3157DBVR-MS
- Store part #
- C7434169
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,300 in stock
#C7434169
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.07 | ₹60.70 |
| 100+ | ₹4.83 | ₹483.00 |
| 300+ | ₹4.21 | ₹1,263.00 |
| 3,000+ | ₹3.74 | ₹11,220.00 |
| 6,000+ | ₹3.37 | ₹20,220.00 |
| 9,000+ | ₹3.19 | ₹28,710.00 |
10 × ₹6.07
₹60.70
excl. GST
₹71.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G3157DBVR-MS
₹60.70 for 10 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Input Logic Level - High
- 1.5V;2.4V
- Operating Temperature
- -25℃~+85℃
- Input Logic Level - Low
- 400mV
- Features
- Overvoltage-tolerant input
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1;2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
The SN74LVC1G3157 is an advanced CMOS analog switch fabricated using silicon-gate CMOS technology. It achieves ultra-low propagation delay while maintaining the low power consumption characteristic of CMOS. Analog and digital voltages can swing across the full supply voltage range (from VCC to GND). The select pin features overvoltage protection, capable of withstanding up to 7.0V regardless of the operating voltage without damage or degradation of normal device operation.
Key features
- Low power consumption
- High speed
- Standard CMOS logic levels
- High bandwidth with improved linearity
- Switchable for standard NTSC/PAL video, audio, SPDIF, and HDTV; suitable for clock switching, data multiplexing, etc.
- Low on-resistance
- Break-before-make circuit to prevent accidental short circuits
- Operating temperature: -55℃ ~ +125℃
- Package: SC70-6, DFN1.45×1.0-6, SOT23-6
