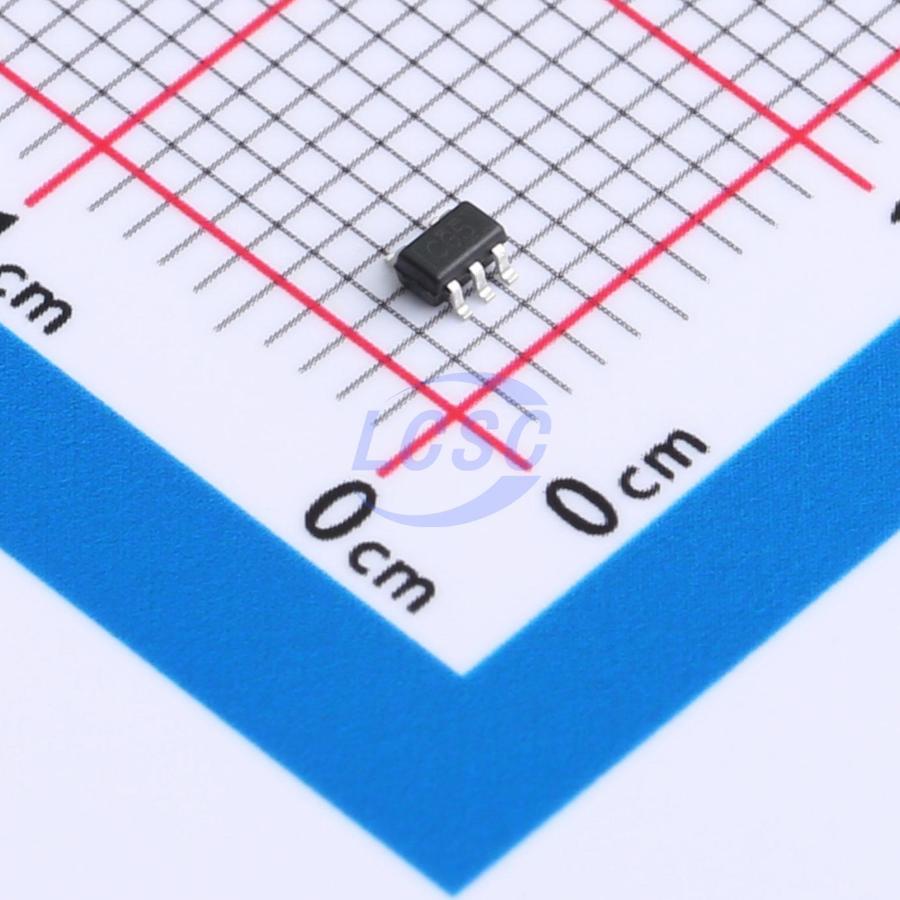

SN74LVC1G32DCKR(UMW)
10uA 1.65V~5.5V 1 4.4ns@5V,15pF SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single 2-input OR gate
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC1G32DCKR(UMW)
- Store part #
- C7394028
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,500 in stock
#C7394028
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.73 | ₹37.30 |
| 100+ | ₹3.25 | ₹325.00 |
| 300+ | ₹3.02 | ₹906.00 |
| 3,000+ | ₹2.84 | ₹8,520.00 |
| 6,000+ | ₹2.70 | ₹16,200.00 |
| 9,000+ | ₹2.63 | ₹23,670.00 |
10 × ₹3.73
₹37.30
excl. GST
₹44.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G32DCKR(UMW)
₹37.30 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Operating Temperature
- -40℃~+85℃
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Elements
- 1
- Current - Output High(IOH)
- 24mA
- Propagation Delay
- 4.4ns@5V,15pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
UMW SN74LVC1G32 is a single 2-input OR gate available in three miniature packages. The device delivers speed and drive capability comparable to LCX multi-gate products.
Key features
- Miniature SC70-5/SOT23-5/DFN package
- 2.4ns propagation delay (typical, at 5V supply)
- Source/sink current 24mA (at 3.0V)
- Over-voltage tolerant inputs
- Designed for 1.65V to 5.5V VCC operating range
- Lead-free and RoHS compliant
