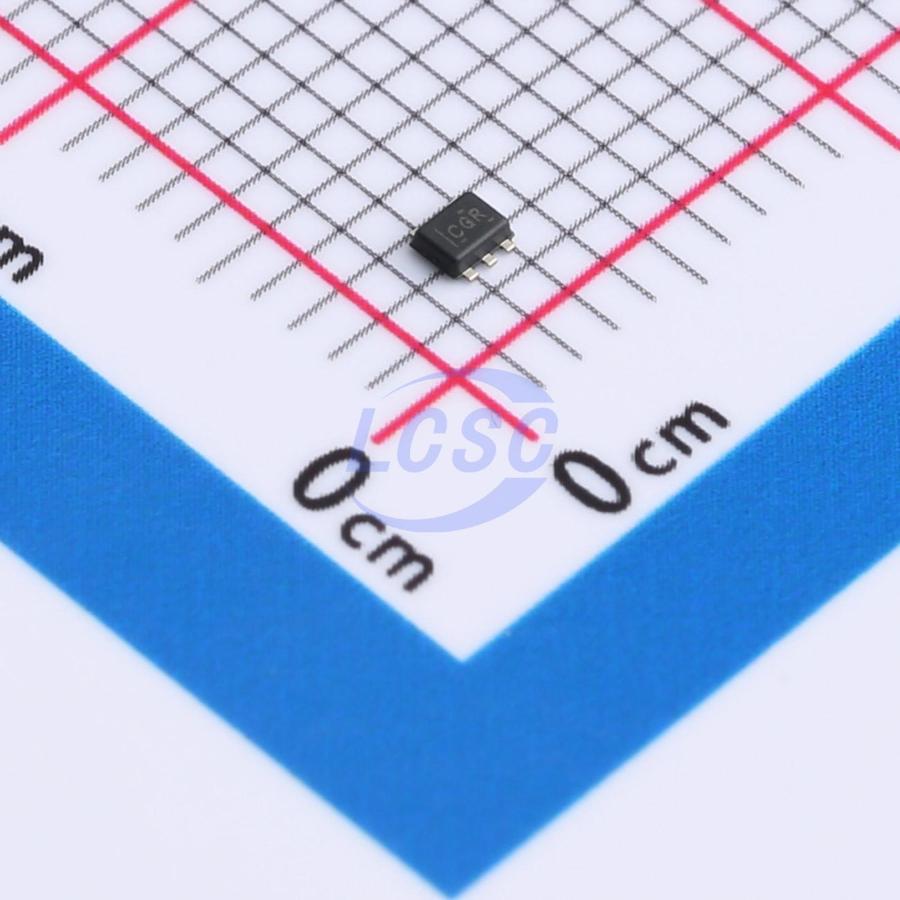

SN74LVC1G32DRLR
10uA 1.65V~5.5V 8ns@3.3V,50pF SOT-553 Gates and Inverters
SOT-553RoHSActive
Single 2-Input Positive-OR Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G32DRLR
- Store part #
- C19829620
- Package / case
- SOT-553
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,120 in stock
#C19829620
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.95 | ₹99.50 |
| 100+ | ₹7.86 | ₹786.00 |
| 300+ | ₹6.83 | ₹2,049.00 |
| 1,000+ | ₹6.05 | ₹6,050.00 |
| 4,000+ | ₹5.41 | ₹21,640.00 |
| 8,000+ | ₹5.11 | ₹40,880.00 |
10 × ₹9.95
₹99.50
excl. GST
₹117.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74LVC1G32DRLR
₹99.50 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV;-
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V;-
- Output Logic Level - High
- 2V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Propagation Delay
- 8ns@3.3V,50pF
- Output Logic Level - Low
- 800mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.445 g
Overview
The SN74LVC1G32 is a single 2-input OR gate which provides the Function Y = A + B in positive logic circuit.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box Cell Phones, Personal Navigation/ GPS MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 1.6V ~ 5.5V
- Low power current: ICC = 10μA (Max)
- ±24mA output drive (VCC = 3.0V)
- Power down protection
- SOT23-5 Package Available
- SOT353 Package Available
- SOT553 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G32X5#C48543232TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 3,945 | ₹11.05 · 3,945 in stock | View |
