XBLWDatasheet (PDF)

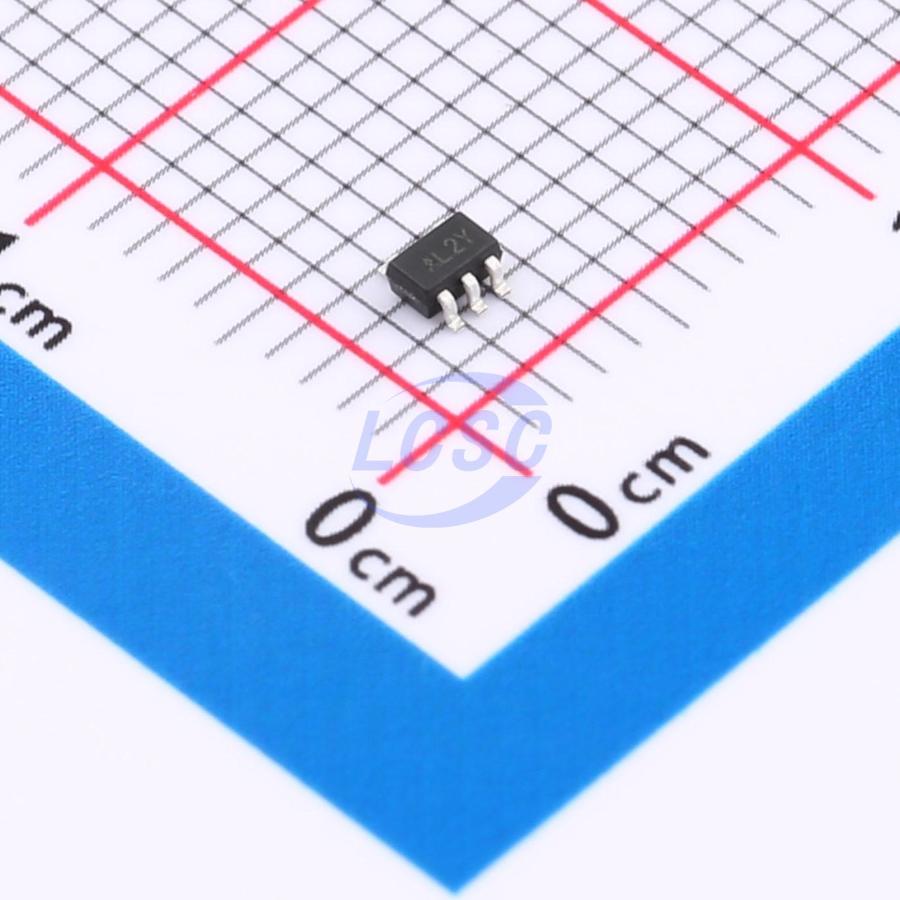

SN74LVC1G32T353(XBLW)
Schmitt trigger 1.65V~5.5V 23ns@1.65V,30pF 4uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
Single 2-input OR Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LVC1G32T353(XBLW)
- Store part #
- C41408436
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,640 in stock
#C41408436
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.04 | ₹50.40 |
| 100+ | ₹3.98 | ₹398.00 |
| 300+ | ₹3.45 | ₹1,035.00 |
| 3,000+ | ₹3.06 | ₹9,180.00 |
| 6,000+ | ₹2.74 | ₹16,440.00 |
| 9,000+ | ₹2.59 | ₹23,310.00 |
10 × ₹5.04
₹50.40
excl. GST
₹59.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G32T353(XBLW)
₹50.40 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV~800mV
- Propagation Delay
- 23ns@1.65V,30pF
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The SN74LVC1G32 is a single 2-input OR gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
Applications
- AV Receiver
- Blu-ray Player and Home Theater
- Digital Picture Frame (DPF)
- Embedded PC
- High-Speed Data Acquisition and Generation
- IP Phone: Wireless
- Motor Control: High-Voltage
- Optical Networking: Video Over Fiber and EPON
- Personal Navigation Device (GPS)
- Portable Media Player
- Private Branch Exchange (PBX)
- Server
- PSU
- SSD: Internal and External
- TV: LCD/Digital and High-Definition (HDTV)
- Vector Signal Analyzer and Generator
- Wireless Headset, Keyboard, Mouse, and Repeater
Key features
- Wide supply voltage range from 1.65V to 5.5V
- Specified from -40°C to +125°C
- Input accepts voltages up to 5V
- CMOS low power consumption
- ±24 mA output drive (VCC = 3.0V)
- Packaging information: SOT23-5/SOT353
