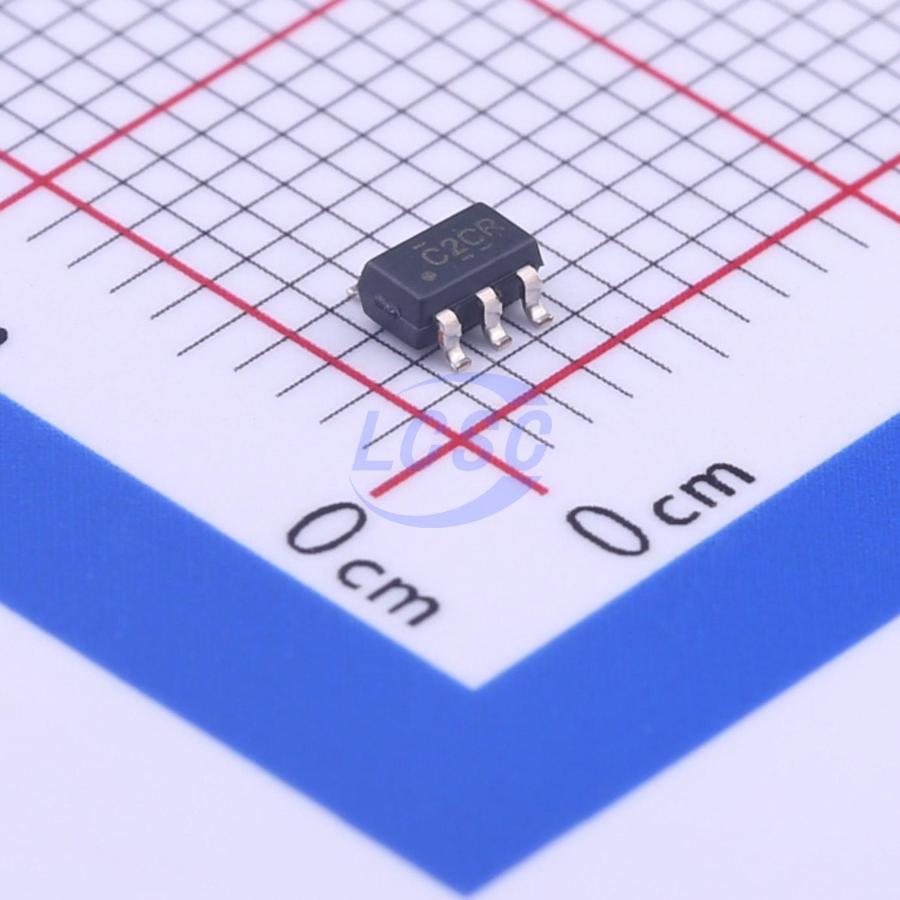

SN74LVC1G332DBVR
10uA 1.65V~5.5V 4.5ns@5V,50pF SOT-23-6 Gates and Inverters RoHS
SOT-23-6ROHS3 CompliantActive
SINGLE 3-INPUT POSITIVE-OR GATE
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G332DBVR
- Store part #
- C43368
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,550 in stock
#C43368
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.67 | ₹178.35 |
| 50+ | ₹28.30 | ₹1,415.00 |
| 150+ | ₹25.14 | ₹3,771.00 |
| 500+ | ₹21.19 | ₹10,595.00 |
| 3,000+ | ₹18.26 | ₹54,780.00 |
| 6,000+ | ₹17.21 | ₹1,03,260.00 |
5 × ₹35.67
₹178.35
excl. GST
₹210.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G332DBVR
₹178.35 for 5 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV~800mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.7V~2V
- Logic Family
- 74LVC Series
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 4.5ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
The SN74LVC1G332 performs the Boolean function in Y = A + B + C or Y = A(overline)•B(overline)•C(overline) positive logic. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Key features
- Available in the Texas Instruments NanoStar and NanoFree Packages
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5V Max
- Max tpd of 4.5 ns at 3.3V
- Low Power Consumption, 10-μA Max ICC
- ±24-mA Output Drive at 3.3V
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 200-V Machine Model (A115-A) - 1000-V Charged-Device Model (C101)
