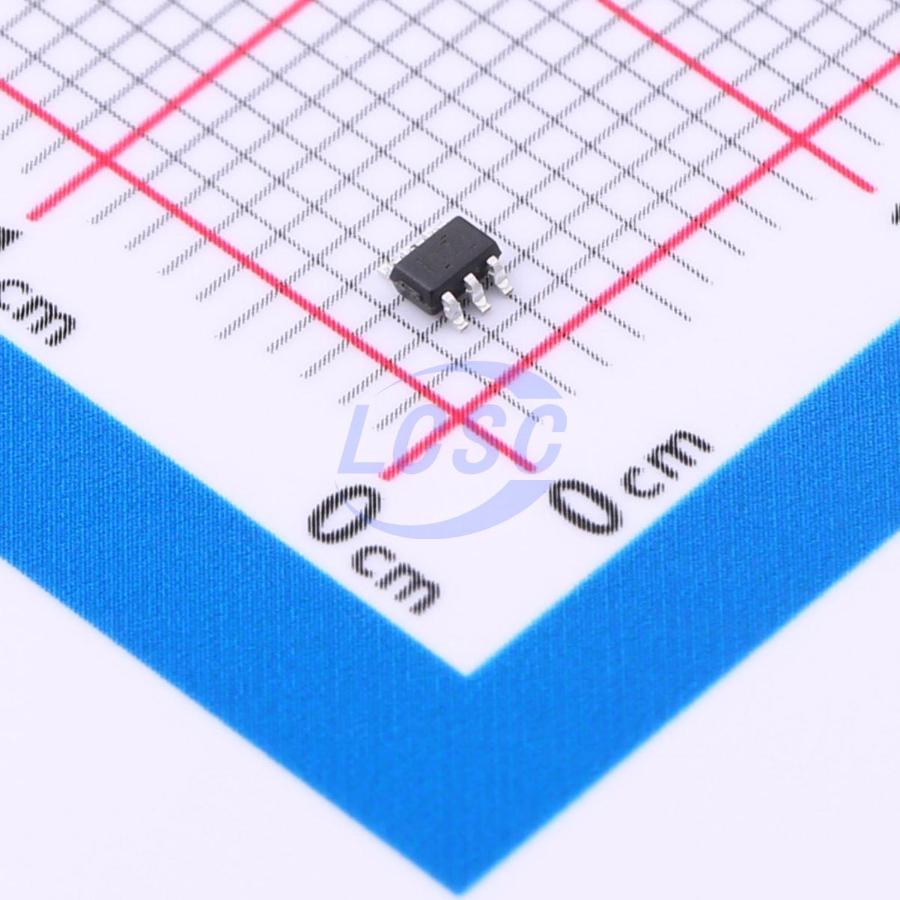

SN74LVC1G332DCKR
1.65V~5.5V 4.5ns@5V,50pF 10uA SC-70-6 Gates and Inverters RoHS
SC-70-6ROHS3 CompliantActive
Single 3-Input Positive-OR Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G332DCKR
- Store part #
- C2865081
- Package / case
- SC-70-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,495 in stock
#C2865081
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.19 | ₹115.95 |
| 50+ | ₹18.20 | ₹910.00 |
| 150+ | ₹15.77 | ₹2,365.50 |
| 500+ | ₹13.60 | ₹6,800.00 |
| 3,000+ | ₹13.01 | ₹39,030.00 |
| 6,000+ | ₹12.65 | ₹75,900.00 |
5 × ₹23.19
₹115.95
excl. GST
₹136.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G332DCKR
₹115.95 for 5 + GST
Specifications
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 4.5ns@5V,50pF
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection
- Input Logic Level - Low
- 700mV~800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V~2V
- Output Logic Level - High
- 2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The SN74LVC1G332 device performs the Boolean function in Y = A + B + C or Y = ¬(¬A • ¬B • ¬C) positive logic. NanoStarTM and NanoFreeTM package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Key features
- Available in the Texas Instruments NanoStarTN and NanoFreeTM Packages
- Supports 5-V Vcc Operation
- Inputs Accept Voltages to 5.5 V
- Supports Down Translation to Vcc
- Max tpd of 4.5 ns at 3.3 V
- Low Power Consumption, 10-μA Max Icc
- ±24-mA Output Drive at 3.3 V
- Ioff Supports Live Insertion, Partial-Power Down Mode, and Back-Drive Protection
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G332GW,125#C548342Nexperia · SOT-363 | Nexperia | SOT-363 | 2,960 | ₹20.52 · 2,960 in stock | View |
 | RS1G332XC6#C20611918RUNIC · SC-70-6 | RUNIC | SC-70-6 | 120 | ₹14.42 · 120 in stock | View |
| 74LVC1G332GW,125-JSM#C53114308JSMSEMI · SOT-363 | JSMSEMI | SOT-363 | 2,895 | ₹17.25 · 2,895 in stock | View | |
 | CJ74LVC1G332R6N#C52145629JSCJ · SOT-363 | JSCJ | SOT-363 | 15 | ₹7.33 · 15 in stock | View |
 | EM74LVC1G332GW#C49188117EnergyMath · SOT-363 | EnergyMath | SOT-363 | 50 | ₹7.58 · 50 in stock | View |
