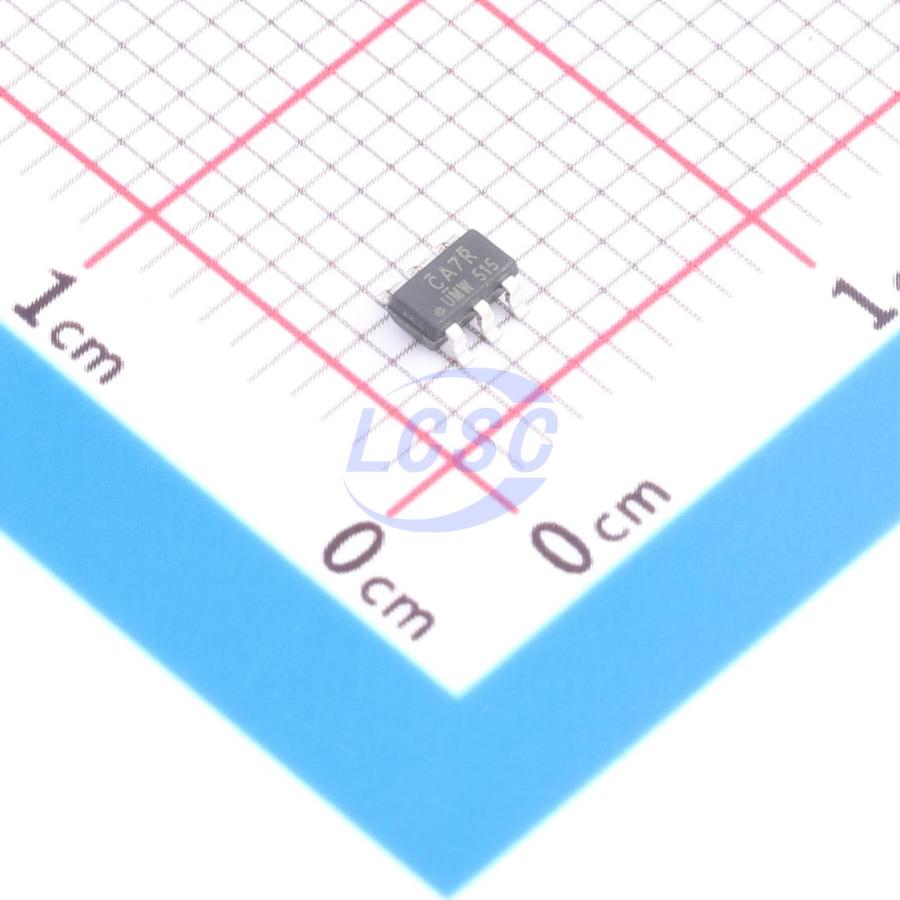

SN74LVC1G57DBVR(UMW)
₹86.90 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 10.5ns@3V,50pF
- Output Logic Level - Low
- 800mV
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 3;1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
The SN74LVC1G57 is a configurable multiple-function gate with Schmitt-trigger inputs. The device can be configured via 3-bit inputs to implement any of the following logic functions: AND, OR, NAND, NOR, XNOR, inverter, and buffer. All inputs can be connected directly to VCC or GND. Inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V and 5V environments. The device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging reverse current flow through the device when it is powered down.
Applications
- Active Noise Cancellation
- Barcode Scanner
- Blood Pressure Monitor
- CPAP Machine
- Cable Solutions
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Overvoltage-tolerant inputs up to 5.5V
- High noise immunity
- ±24mA output drive capability (VCC=3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Direct TTL-level interface compatible
- IOFF circuit enables partial power-down mode operation
- Multiple package options
