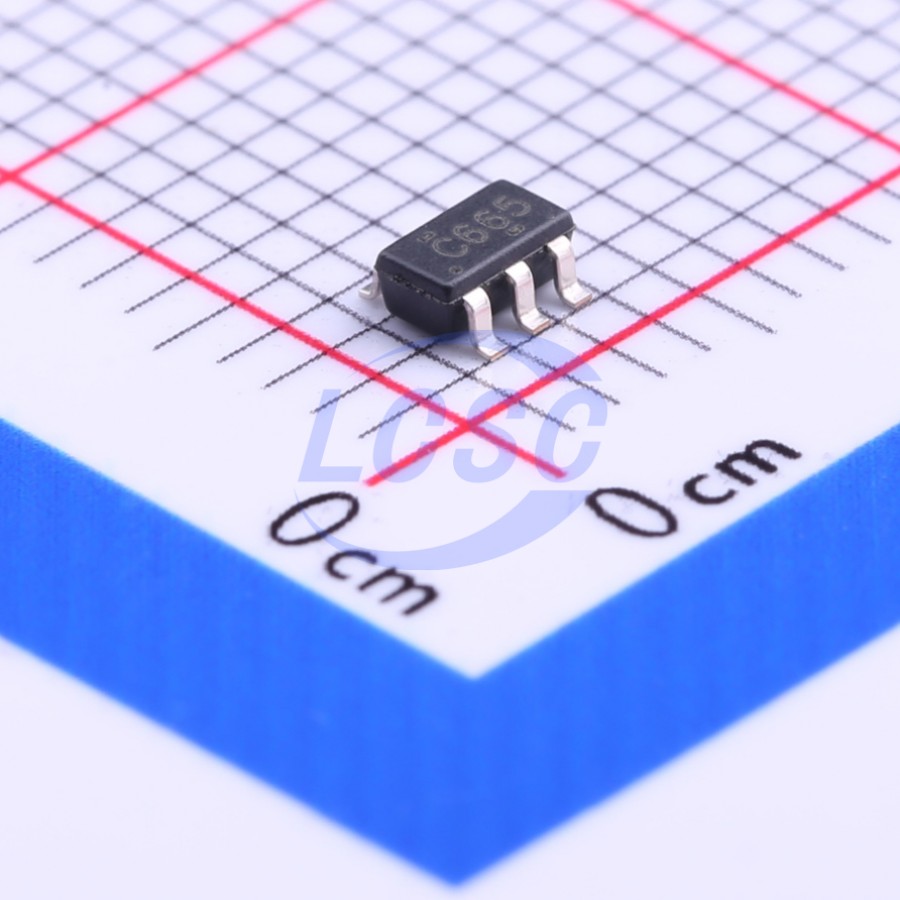

SN74LVC1G66DBVR
5.5Ω 1 1.65V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers RoHS
SOT-23-5ROHS3 CompliantActive
Single Bilateral Analog Switch
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G66DBVR
- Store part #
- C133643
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,095 in stock
#C133643
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.09 | ₹95.45 |
| 50+ | ₹15.12 | ₹756.00 |
| 150+ | ₹13.14 | ₹1,971.00 |
| 500+ | ₹11.64 | ₹5,820.00 |
| 3,000+ | ₹9.41 | ₹28,230.00 |
| 6,000+ | ₹8.81 | ₹52,860.00 |
5 × ₹19.09
₹95.45
excl. GST
₹112.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G66DBVR
₹95.45 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Ron
- 5.5Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 800ps
- Con
- 13pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
This single analog switch is designed for 1.65-V to 5.5–VCC operation. The SN74LVC1G66 device can handle analog and digital signals. The device permits bidirectional transmission of signals with amplitudes of up to 5.5 V (peak). NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
Applications
- Wireless Devices
- Audio and Video Signal Routing
- Portable Computing
- Wearable Devices
- Signal Gating, Chopping, Modulation or Demodulation (Modem)
- Signal Multiplexing for Analog-to-Digital and Digital-to-Analog Conversion Systems
Key features
- Available in the Texas Instruments NanoFree Package
- 1.65-V to 5.5–VCC Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 0.8 ns at 3.3 V
- High On-Off Output Voltage Ratio
- High Degree of Linearity
- High Speed, Typically 0.5 ns (VCC=3 V, CL=50 pF)
- Low ON-State Resistance, Typically 5.5 Ω (VCC =4.5 V)
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G66DBVT#C2673511TI · SOT-23-5 | TI | SOT-23-5 | 524 | ₹91.14 · 524 in stock | View |
 | SN74LVC1G66DBVR(UMW)#C5375974UMW · SOT-23-5 | UMW | SOT-23-5 | 40,470 | ₹8.12 · 40,470 in stock | View |
 | SN74LVC1G66DB(LX)#C26159246lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 2,660 | ₹9.08 · 2,660 in stock | View |
 | TP74LVC1G66S5#C46472248TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,525 | ₹12.09 · 2,525 in stock | View |
 | RS2166XF5#C783418RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 1,675 | ₹18.64 · 1,675 in stock | View |
