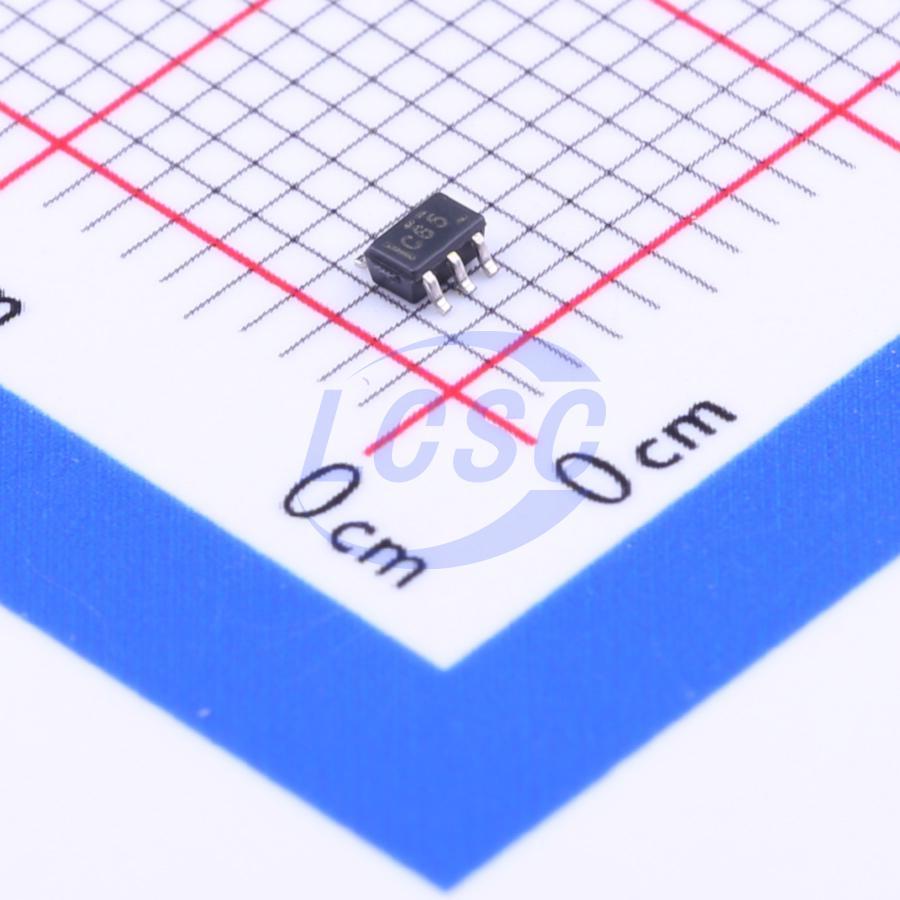

SN74LVC1G66DCKR

This single analog switch is designed for 1.65-V to 5.5 VCC operation. The SN74LVC1G66 device can handle analog and digital signals. The device permits bidirectional transmission of signals with amplitudes of up to 5.5 V (peak). NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Applications

• Wireless Devices
• Audio and Video Signal Routing
• Portable Computing
• Wearable Devices
• Signal Gating, Chopping, Modulation or Demodulation (Modem)
• Signal Multiplexing for Analog-to-Digital and Digital-to-Analog Conversion Systems

Key features

• Available in the NanoFree Package
• 1.65-V to 5.5-VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 0.8 ns at 3.3 V
• High On-Off Output Voltage Ratio
• High Degree of Linearity
• High Speed, Typically 0.5 ns (VCC = 3 V, CL = 50 pF)
• Low ON-State Resistance, Typically 5.5 Ω (VCC = 4.5 V)
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101)
