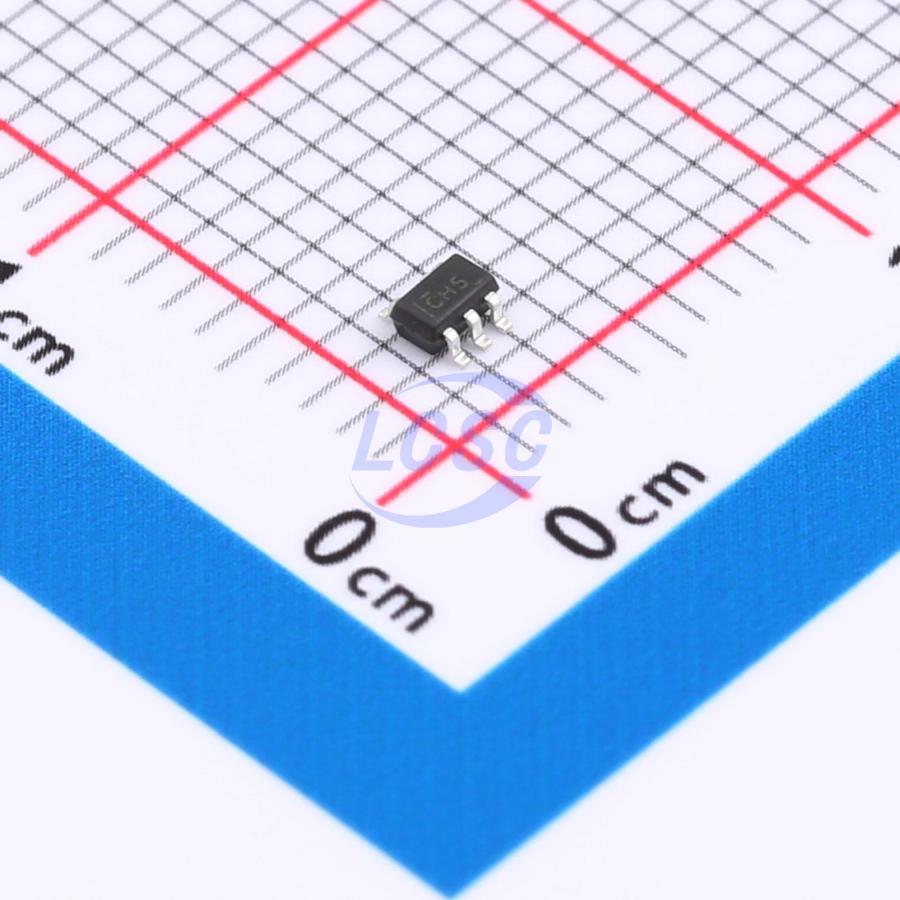

SN74LVC1G86DCKR(UMW)
TTL-compatible CMOS 1.65V~5.5V 2.9ns@3.3V,50pF 10uA SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
High-performance single 2-input XOR gate
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC1G86DCKR(UMW)
- Store part #
- C7394027
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,390 in stock
#C7394027
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.02 | ₹60.20 |
| 100+ | ₹4.71 | ₹471.00 |
| 300+ | ₹4.06 | ₹1,218.00 |
| 3,000+ | ₹3.57 | ₹10,710.00 |
| 6,000+ | ₹3.18 | ₹19,080.00 |
| 9,000+ | ₹2.99 | ₹26,910.00 |
10 × ₹6.02
₹60.20
excl. GST
₹71.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G86DCKR(UMW)
₹60.20 for 10 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 2.9ns@3.3V,50pF
- Features
- Overvoltage-tolerant input
- Operating Temperature
- -55℃~+125℃
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
SN74LVC1G86 is a high-performance single 2-input XOR gate operating over a supply voltage range of 2.3V to 5.5V.
Key features
- Over-voltage tolerant inputs: V_IN range 0V to 7.0V when V_CC is 0.5V to 5.5V
- TTL compatible: interfaces with 5.0V TTL logic at V_CC = 2.7V to 3.6V
- LVCmos compatible
- 24mA output sink current capability, pull-up voltage range 0V to 7.0V
- Miniature SC70-5, SOT23-5, and DFN6-1.0mm×1.5mm packages
- Ultra-high speed: typical propagation delay tPD of 2.5ns at V_CC = 5.0V
- Near-zero quiescent supply current for significantly reduced system power requirements
- Die complexity: 20 FETs
- Lead-free, halogen-free/BFR-free, and RoHS compliant
