SN74LVC1GU04DBVR

1.65V~5.5V 3.5ns@5V,50pF 10uA 1 SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantActive

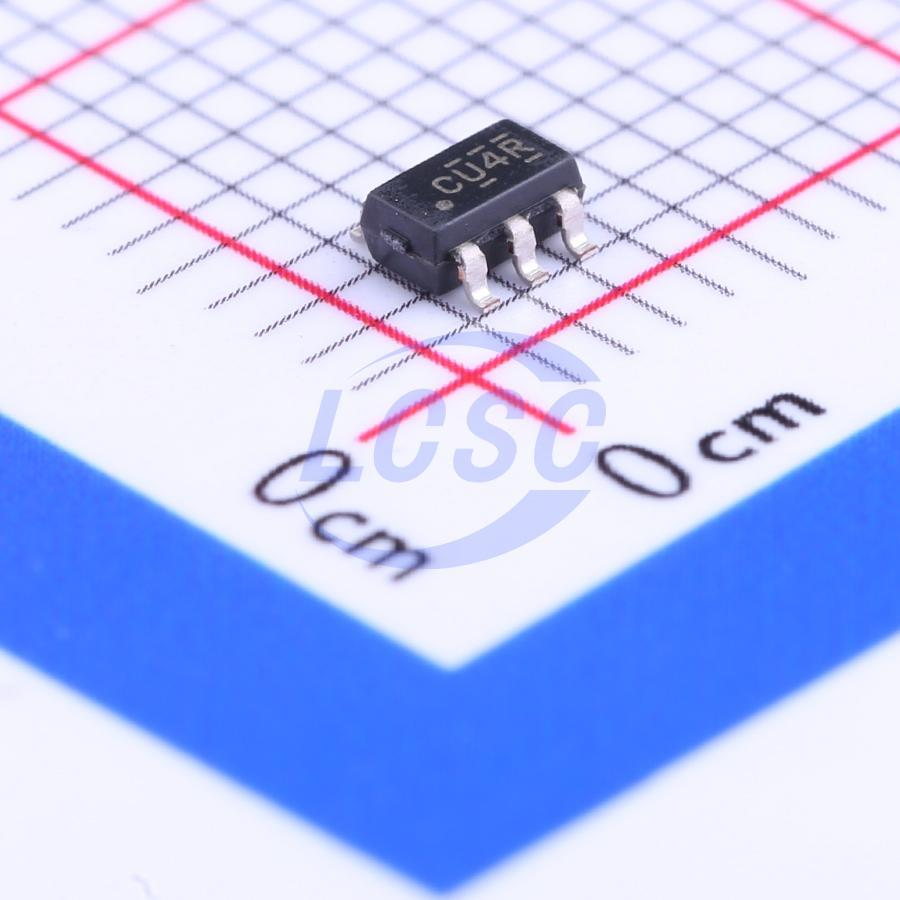

Single Inverter Gate

Manufacturer: TI
Manufacturer part #: SN74LVC1GU04DBVR
Store part #: C81934
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,435 in stock

#C81934

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
5+	₹45.07	₹225.35
50+	₹35.43	₹1,771.50
150+	₹31.30	₹4,695.00
500+	₹26.14	₹13,070.00
3,000+	₹22.53	₹67,590.00
6,000+	₹21.14	₹1,26,840.00

Quantity (min 5, multiples of 5)

5 × ₹45.07

₹225.35

excl. GST

₹265.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1GU04DBVR

₹225.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 3.5ns@5V,50pF
Features: Power shutdown protection
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 410mV~1.38V
Input Logic Level - High: 1.24V~4.13V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

- This single inverter gate is designed for 1.65-V to 5.5-V CC operation. - The SN74LVC1GU04 device contains one inverter with an unbuffered output and performs the Boolean function Y = A̅. - NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Applications

AV Receivers
Blu-ray Players and Home Theaters
DVD Recorders and Players
Desktop or Notebook PCs
Digital Radio or Internet Radio Players
Digital Video Cameras (DVC)
Embedded PCs
GPS: Personal Navigation Devices
Mobile Internet Devices
Network Projector Front-Ends
Portable Media Players
Pro Audio Mixers
Smoke Detectors
Solid-State Drive (SSD): Enterprise
High-Definition (HDTV) Tablets: Enterprise
Audio Docks: Portable
DLP Front Projection Systems
DVR and DVS
Digital Picture Frame (DPF)
Digital Still Cameras

Key features

Available in the Texas Instruments NanoFree Package
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Unbuffered Output
Maximum tpd of 3.7 ns at 3.3 V
Low Power Consumption, 10-μA Maximum ICC
±24-mA Output Drive at 3.3 V
|off| Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
