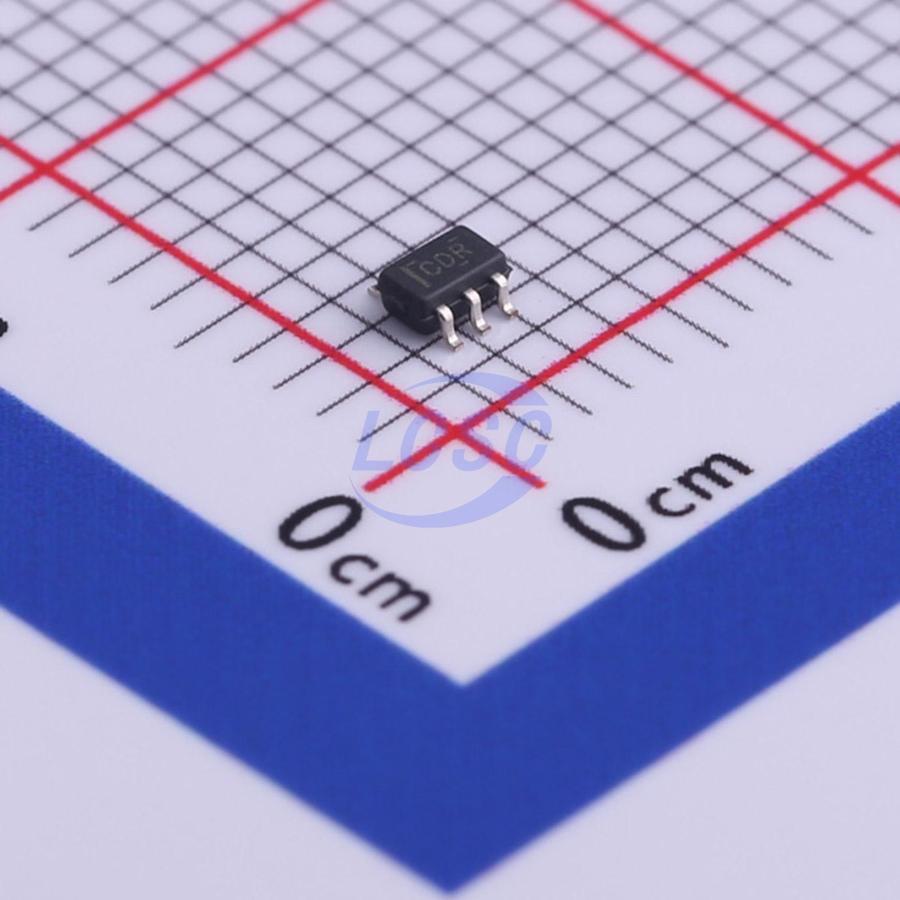

SN74LVC1GU04DCKR

This single inverter gate is designed for 1.65-V to 5.5-V CC operation. The SN74LVC1GU04 device contains one inverter with an unbuffered output and performs the Boolean function Y = A̅. NanoFree package technology is a major breakthrough in device packaging concepts, using the die as the package.

Applications

• AV Receivers
• Blu-ray Players and Home Theaters
• DVD Recorders and Players
• Desktop or Notebook PCs
• Digital Radio or Internet Radio Players
• Digital Video Cameras (DVC)
• Embedded PCs
• GPS: Personal Navigation Devices
• Mobile Internet Devices
• Network Projector Front-Ends
• Portable Media Players
• Pro Audio Mixers
• Smoke Detectors
• Solid-State Drive (SSD): Enterprise
• High-Definition (HDTV)
• Tablets: Enterprise
• Audio Docks: Portable
• DLP Front Projection Systems
• DVR and DVS
• Digital Picture Frame (DPF)
• Digital Still Cameras

Key features

• Available in the NanoFree Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Unbuffered Output
• Maximum tpd of 3.7 ns at 3.3 V
• Low Power Consumption, 10-μA Maximum ICC
• ±24-mA Output Drive at 3.3 V
• Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
