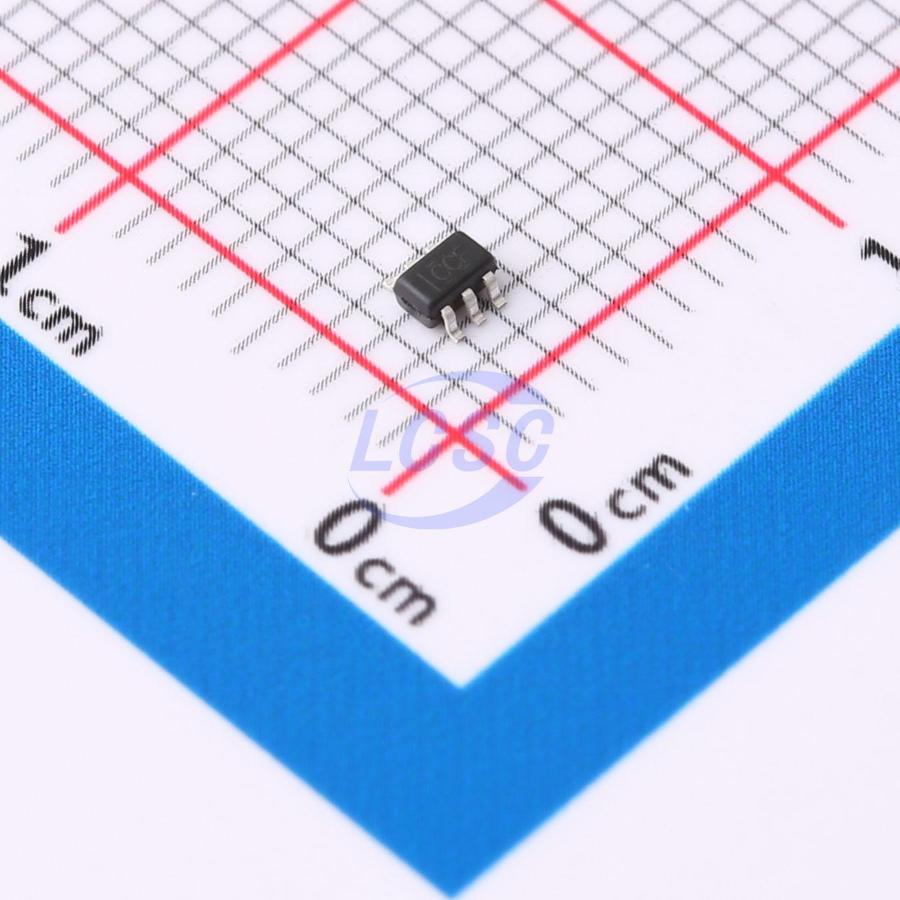

SN74LVC2G04DCKR(UMW)
1.65V~5.5V 7ns@3.3V,50pF 10uA 2 SC70-6 Gates and Inverters RoHS
SC70-6ROHS3 CompliantActive
Dual Inverter Operating from 1.65V to 5.5V Supply
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC2G04DCKR(UMW)
- Store part #
- C7394041
- Package / case
- SC70-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,800 in stock
#C7394041
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.18 | ₹71.80 |
| 100+ | ₹5.57 | ₹557.00 |
| 300+ | ₹4.76 | ₹1,428.00 |
| 3,000+ | ₹3.97 | ₹11,910.00 |
| 6,000+ | ₹3.48 | ₹20,880.00 |
| 9,000+ | ₹3.24 | ₹29,160.00 |
10 × ₹7.18
₹71.80
excl. GST
₹84.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G04DCKR(UMW)
₹71.80 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 7ns@3.3V,50pF
- Features
- Power shutdown protection
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 2.3V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
UMW SN74LVC2G04 is a high-performance dual inverter operating over a voltage range of 1.65V to 5.5V. The device is fabricated using advanced CMOS technology to achieve ultra-high speed and high output drive capability.
Key features
- Designed for 1.65V to 5.5V Vcc operation
- Overvoltage-tolerant inputs
- 24 mA balanced output sink and source current capability
- Near-zero quiescent supply current
- Significantly reduced system power consumption requirements
- Lead-free and RoHS compliant
