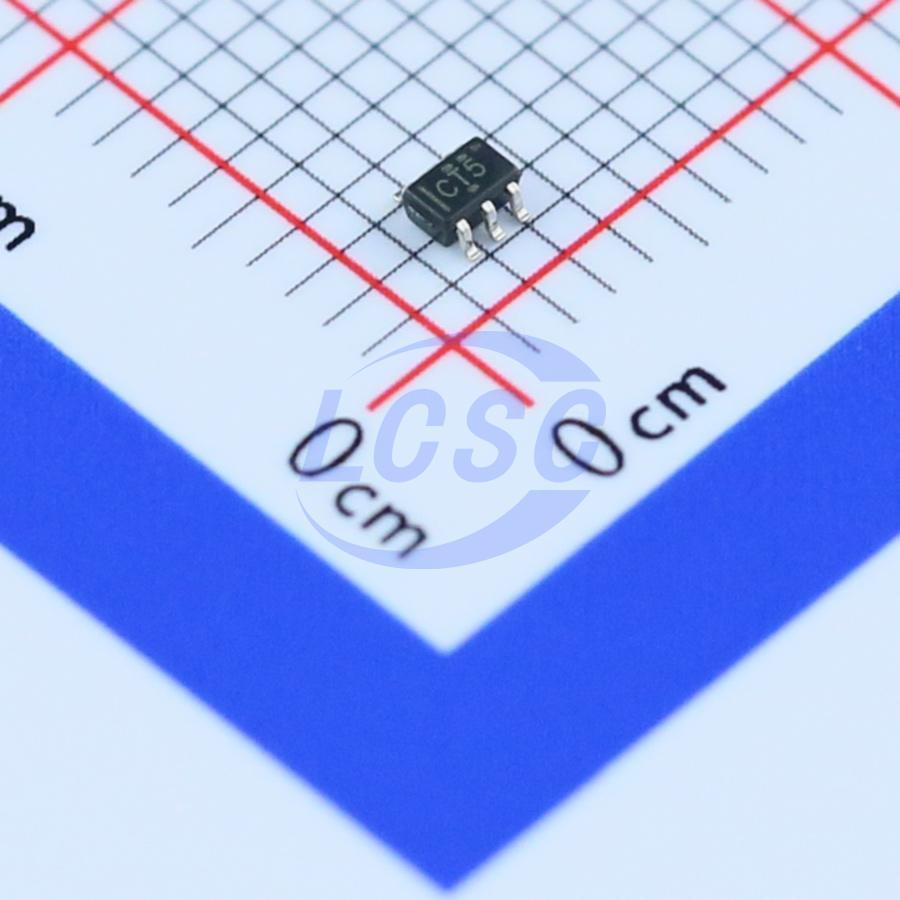

SN74LVC2G06DCKR

This dual inverter buffer and driver is designed for 1.65-V to 5.5 V CC operation. The output of the SN74LVC2G06 device is an open-drain which can be connected to other open-drain outputs to implement active-low, wired-OR, or active-high wired-AND functions. The maximum sink current is 32 mA. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Applications

• AV Receivers
• Blu-ray Players and Home Theaters
• DVD Recorders and Players
• Desktop or Notebook PCs
• Digital Radio or Internet Radio Players
• Digital Video Cameras (DVC)
• Embedded PC
• GPS: Personal Navigation Devices
• Mobile Internet Devices
• Network Projector Front-End
• Portable Media Players
• Pro Audio Mixers
• Smoke Detectors
• Solid-State Drive (SSD): Enterprise
• High-Definition (HDTV)

Key features

• Available in the Texas Instruments Package Supports 5 V CC Operation
• Max tpd of 3.4 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
• Inputs and Open-Drain Outputs Accept Voltages up to 5.5 V
• Ioff Supports Live Insertion, Partial-Power-Down Mode and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• Supports Down-Translation (5 V to 3.3 V and 3.3 V to 1.8 V)
• ESD Protection Exceeds JESD 22
• 2000-V Human Body Model (A114-A)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
