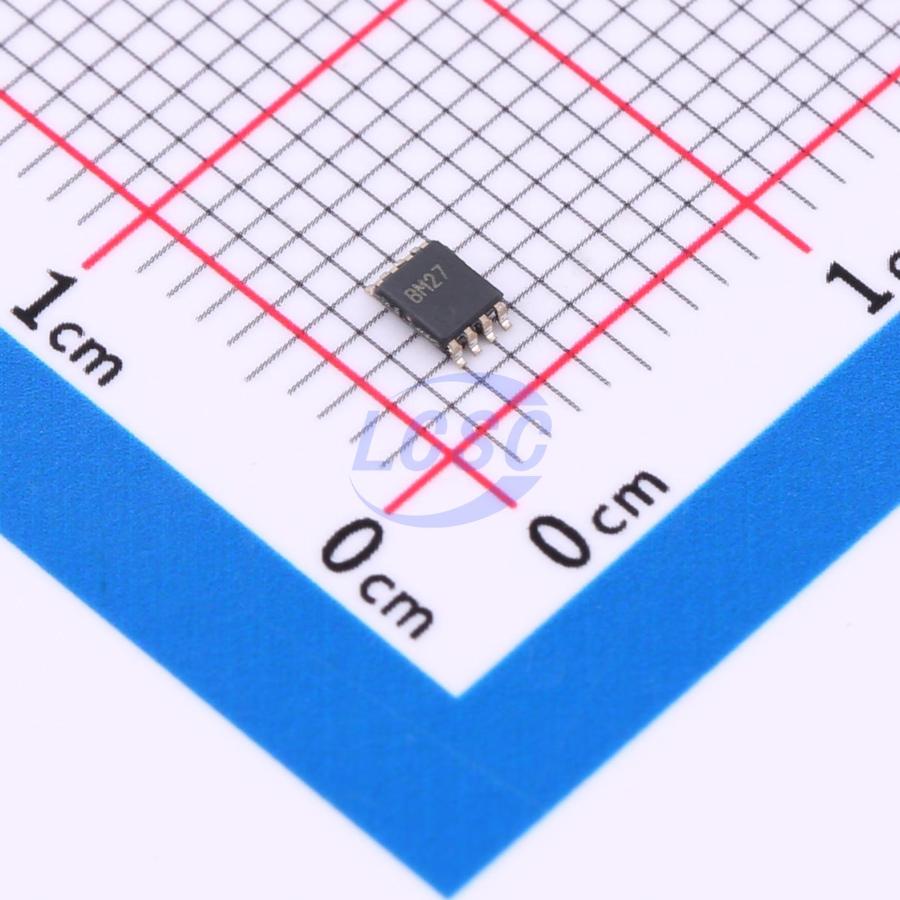

SN74LVC2G08DCU(LX)
1.65V~5.5V 13.5ns@5.5V,50pF 4uA VSSOP-8 Gates and Inverters
VSSOP-8RoHSActive
Dual 2-input And Gate
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LVC2G08DCU(LX)
- Store part #
- C22469960
- Package / case
- VSSOP-8
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,985 in stock
#C22469960
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.10 | ₹140.50 |
| 50+ | ₹22.64 | ₹1,132.00 |
| 150+ | ₹20.29 | ₹3,043.50 |
| 500+ | ₹17.37 | ₹8,685.00 |
| 3,000+ | ₹15.74 | ₹47,220.00 |
| 6,000+ | ₹14.96 | ₹89,760.00 |
5 × ₹28.10
₹140.50
excl. GST
₹165.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G08DCU(LX)
₹140.50 for 5 + GST
Specifications
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 13.5ns@5.5V,50pF
- Features
- Rear drive protection;Overvoltage-tolerant input
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2;2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The SN74LVC2G08 provides a 2-input AND gate function. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of the SN74LVC2G08 as a translator in a mixed 3.3V and 5V environment.
Key features
- Wide supply voltage range from 1.65V to 5.5V
- 5V tolerant outputs for interfacing with 5V logic
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Specified from -40°C to +125°C
