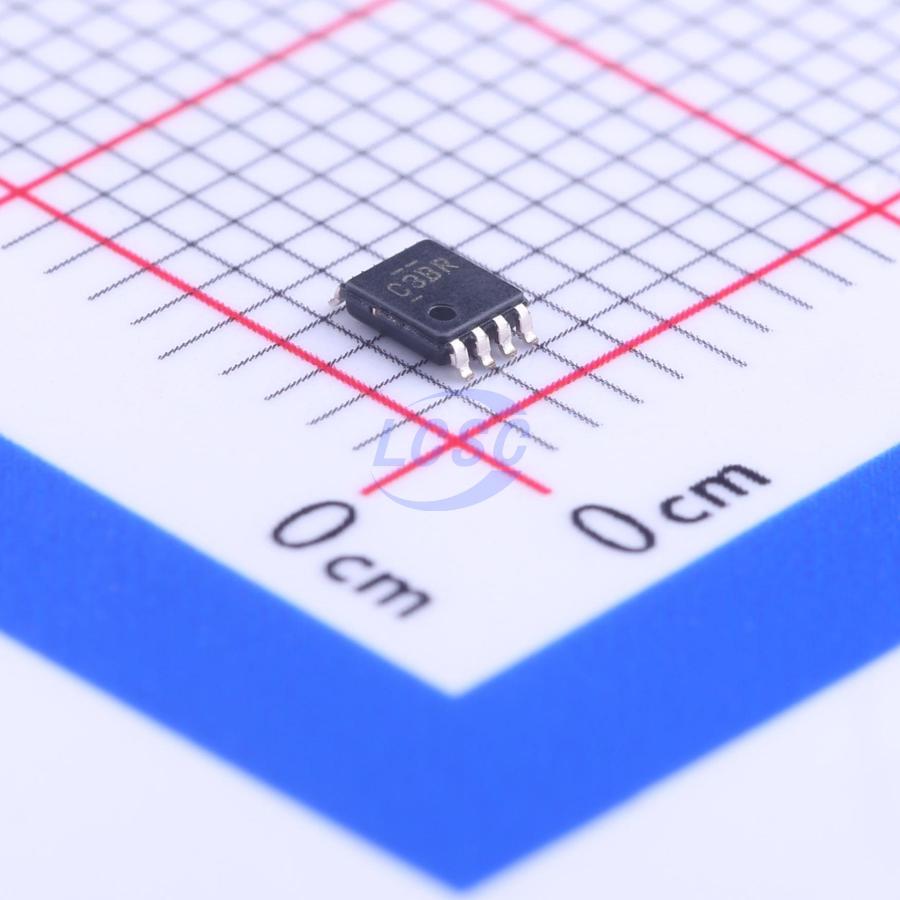

SN74LVC2G132DCUR

This dual 2-input NAND gate with Schmitt-trigger inputs is designed for 1.65-V to 5.5-V Vcc operation. The SN74LVC2G132 contains two inverters and performs the Boolean function Y = A·B or Y = A + B in positive logic. The device functions as two independent inverters, but because of Schmitt action, it has different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device can be triggered from the slowest of input ramps and still give clean jitter-free output signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

• Available in Texas Instruments NanoFree™ Package
• Supports 5-V Vcc Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 5.3 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3V, TA = 25°C
• Typical VOHV (Output VOH Undershoot) > 2V at VCC = 3.3V, TA = 25°C
• Ioff Supports Live Insertion, Partial Power Down Mode, and Back Drive Protection
• Support Translation Down (5V to 3.3V and 3.3V to 1.8V)
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
• 2000-V Human-Body Model (A114-A)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
