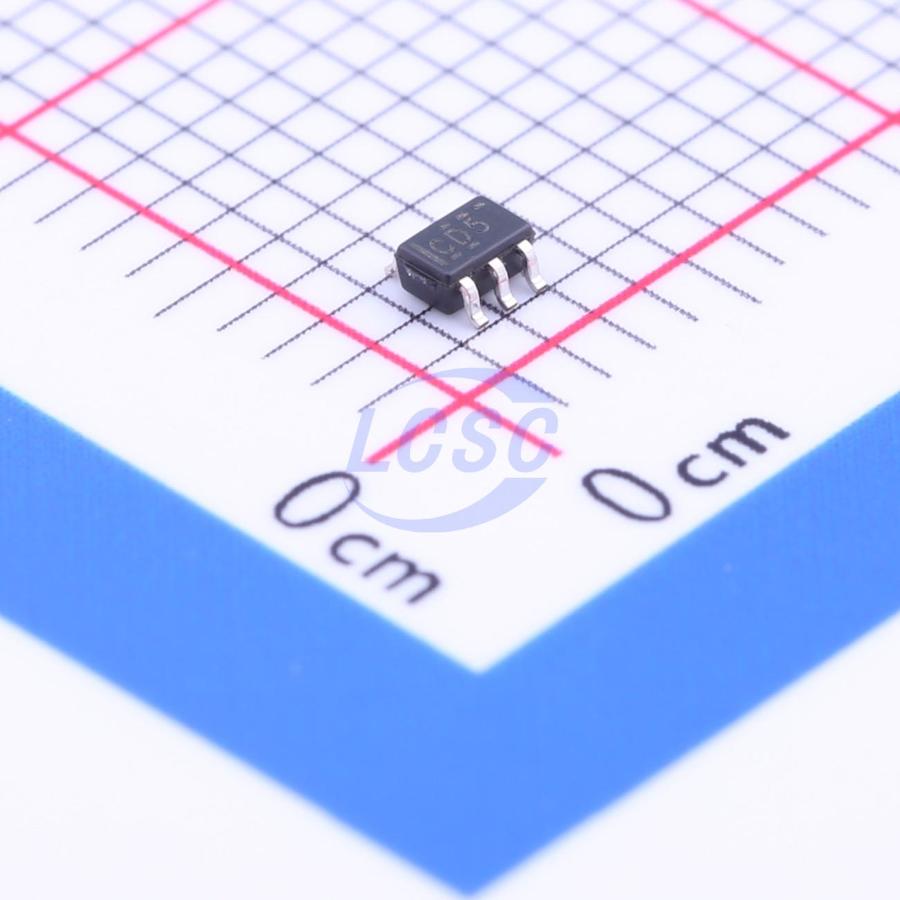

SN74LVC2GU04DCKR
1.65V~5.5V 3.5ns@5V,50pF 10uA 2 SC-70-6 Gates and Inverters RoHS
SC-70-6ROHS3 CompliantActive
Dual Inverter Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC2GU04DCKR
- Store part #
- C116660
- Package / case
- SC-70-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,065 in stock
#C116660
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.25 | ₹186.25 |
| 50+ | ₹29.40 | ₹1,470.00 |
| 150+ | ₹26.04 | ₹3,906.00 |
| 500+ | ₹21.85 | ₹10,925.00 |
| 3,000+ | ₹19.99 | ₹59,970.00 |
| 6,000+ | ₹18.87 | ₹1,13,220.00 |
5 × ₹37.25
₹186.25
excl. GST
₹219.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2GU04DCKR
₹186.25 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 3.5ns@5V,50pF
- Features
- Power shutdown protection
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 410mV~1.38V
- Input Logic Level - High
- 1.24V~4.13V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
This dual inverter is designed for 1.65-V to 5.5–VCC operation. The SN74LVC2GU04 device contains two inverters with unbuffered outputs and performs the Boolean function Y = A̅. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
Key features
- Available in the Texas Instruments NanoFree Package
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 3.7 ns at 3.3 V
- Low Power Consumption, 10-μA Max ICC
- ±24-mA Output Drive at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3V, TA = 25°C
- Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3V, TA = 25°C
- Ioff Supports Live Insertion, Partial-Power Down Mode, and Back-Drive Protection
- Can Be Used as a Down Translator to Translate Inputs From a Max of 5.5 V Down to the VCC Level
- Unbuffered Outputs
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
