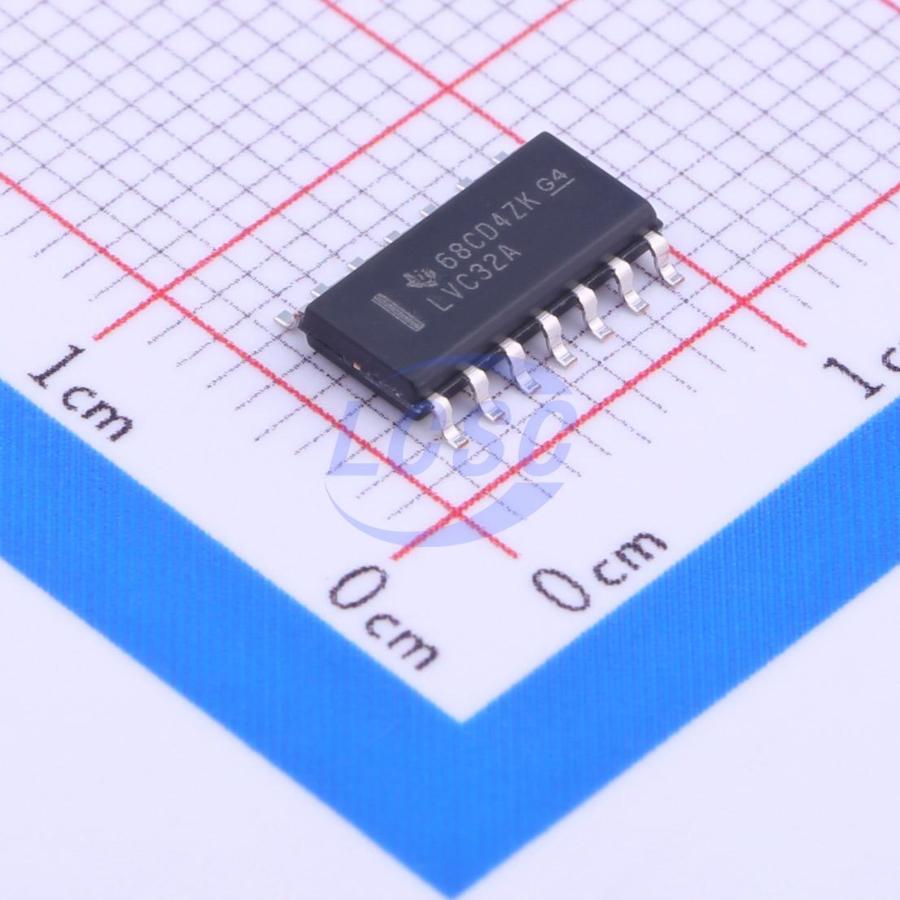

SN74LVC32ADR
1uA 1.65V~3.6V 3.6ns@3.3V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-OR GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC32ADR
- Store part #
- C7852
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,770 in stock
#C7852
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.31 | ₹196.55 |
| 50+ | ₹30.85 | ₹1,542.50 |
| 150+ | ₹26.72 | ₹4,008.00 |
| 500+ | ₹23.05 | ₹11,525.00 |
| 2,500+ | ₹22.04 | ₹55,100.00 |
| 5,000+ | ₹21.43 | ₹1,07,150.00 |
5 × ₹39.31
₹196.55
excl. GST
₹231.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LVC32ADR
₹196.55 for 5 + GST
Specifications
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V~2V
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC Series
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 1.65V~3.6V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Propagation Delay
- 3.6ns@3.3V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The SN54LVC32A quadruple 2-input positive-OR gate is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC32A quadruple 2-input positive-OR gate is designed for 1.65-V to 3.6-V VCC operation. The 'LVC32A devices perform the Boolean function Y = A + B or Y = A(overline) • B(overline) in positive logic. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translator in a mixed 3.3-V/5-V system environment.
Applications
- Level shifting for mixed 3.3V/5V voltage systems
- Logic operation processing
Key features
- Operate From 1.65 V to 3.6 V
- Specified From -40℃ to 85℃, -40℃ to 125℃, and -55℃ to 125℃
- Inputs Accept Voltages to 5.5 V
- Max tpd of 3.8 ns at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74ALVC32DR#C2869325TI · SOIC-14 | TI | SOIC-14 | 74 | ₹62.41 · 74 in stock | View |
| SN74LVC32ADT#C2867927TI · SOIC-14 | TI | SOIC-14 | On request | ₹135.75 · 0 in stock | View | |
 | 74LVC32AS14-13#C842646DIODES · SO-14 | DIODES | SO-14 | On request | ₹13.31 · 0 in stock | View |
| 74ALVC32D,112#C554787Nexperia · SO-14 | Nexperia | SO-14 | On request | ₹46.29 · 0 in stock | View | |
| 74LVC32XS14G/TR#C5153143SGMICRO · SOIC-14 | SGMICRO | SOIC-14 | On request | ₹117.61 · 0 in stock | View | |
