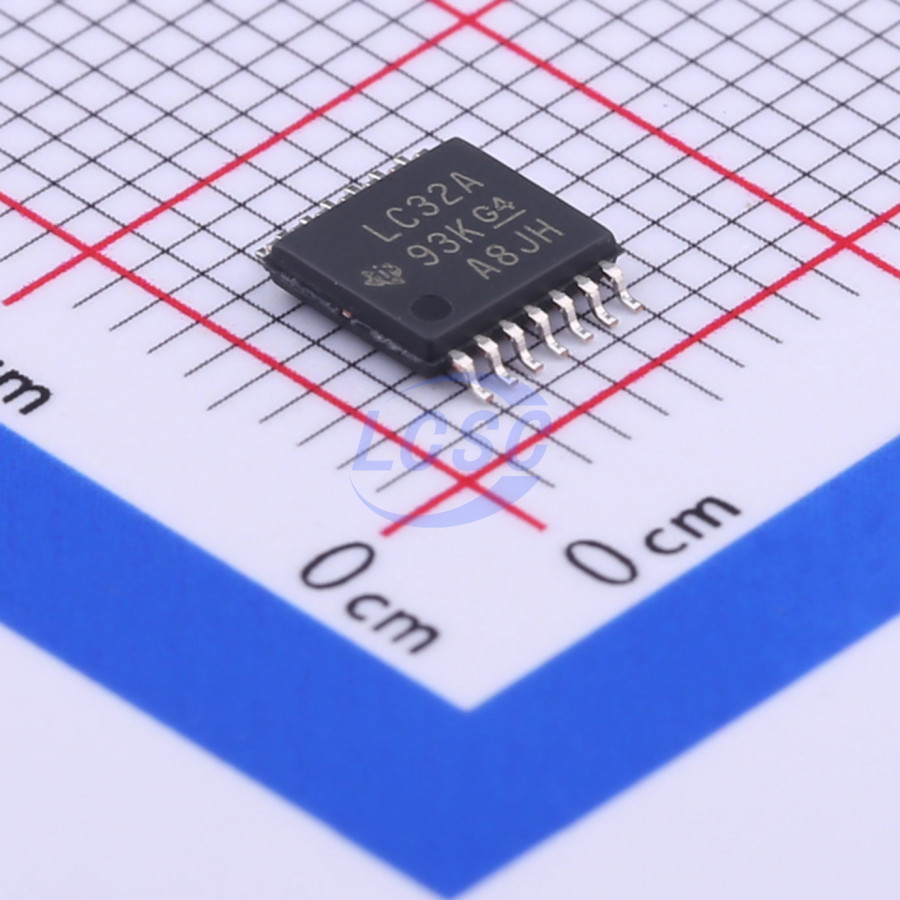

SN74LVC32APWR

The SN54LVC32A quadruple 2-input positive-OR gate is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC32A quadruple 2-input positive-OR gate is designed for 1.65-V to 3.6-V VCC operation. The SNx4LVC32A devices perform the Boolean function Y = A + B or Y = A(overline) • B(overline)(overline) in positive logic. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.

Applications

• AV Receivers
• Audio Docks
• Portable Blu-ray Players and Home Theater
• MP3 Players or Recorders
• Personal Digital Assistant (PDA)
• Power: Telecom/Server AC/DC Supply
• Single Controller
• Analog and Digital Solid State Drives (SSDs)
• Client and Enterprise TVs: LCD, Digital, and High-Definition (HDTV)
• Tablets
• Enterprise Video Analytics
• Server
• Wireless Headsets, Keyboards, and Mice

Key features

• Operate From 1.65 V to 3.6 V
• Specified From -40℃ to +85℃, -40℃ to +125℃, and -55℃ to +125℃
• Inputs Accept Voltages to 5.5 V
• Max tpd of 3.8 ns at 3.3 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
• 2000-V Human-Body Model
• 200-V Machine Model
• 1000-V Charged-Device Model
