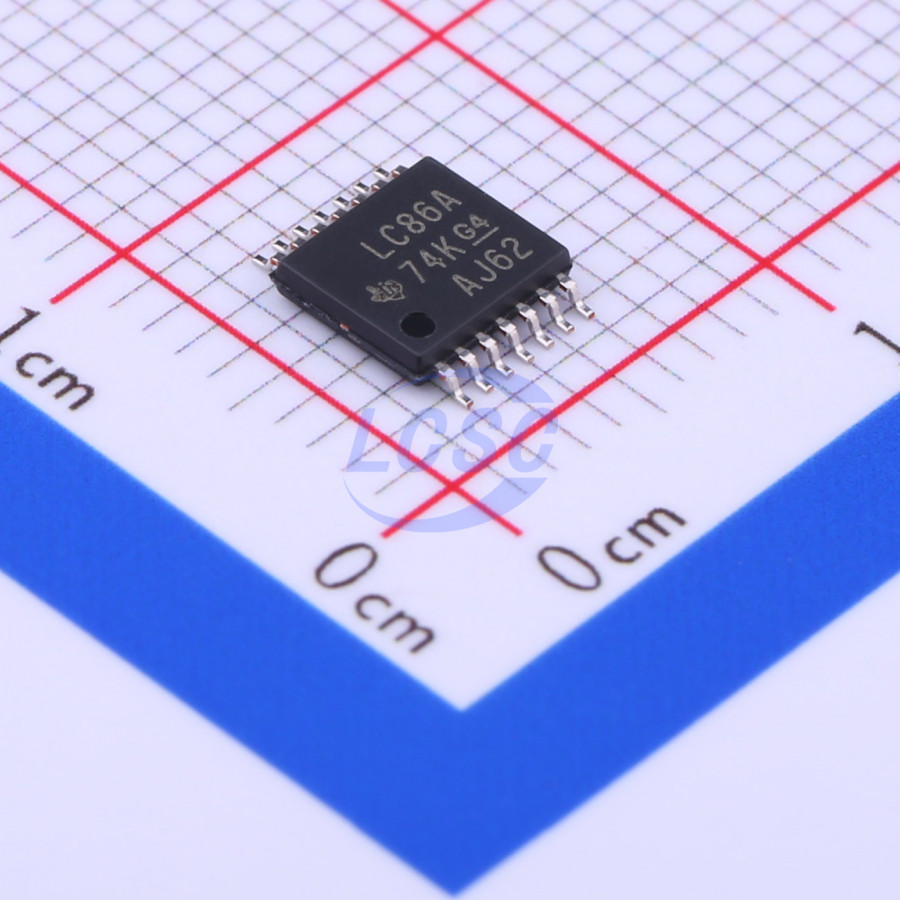

SN74LVC86APWR

The SN54LVC86A quadruple 2-input exclusive-OR gate is designed for 2.7 V to 3.6 V VCC operation, and the SN74LVC86A quadruple 2-input exclusive-OR gate is designed for 1.65 V to 3.6 V VCC operation. The 'LVC86A devices perform the Boolean function Y = A ⊕ B or Y = A(overline)B + A B(overline) in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in a mixed 3.3 V/5 V system environment.

Applications

• True/complement element
• Level shifting in mixed-voltage systems
• Logic identity element
• Even parity element
• Odd parity element

Key features

• Operate From 1.65 V to 3.6 V
• Specified From -40℃ to 85℃, -40℃ to 125℃, and -55℃ to 125℃
• Inputs Accept Voltages to 5.5 V
• Max tpd of 4.6 ns at 3.3 V
• Typical VoLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
• Typical V0HV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
• Latch-Up Performance Exceeds ±50 mA Per JESD 17
• ESD Protection Exceeds JESD 22
• 2000 V Human-Body Model (A114-A)
• 200 V Machine Model (A115-A)
• 1000 V Charged-Device Model (C101)
