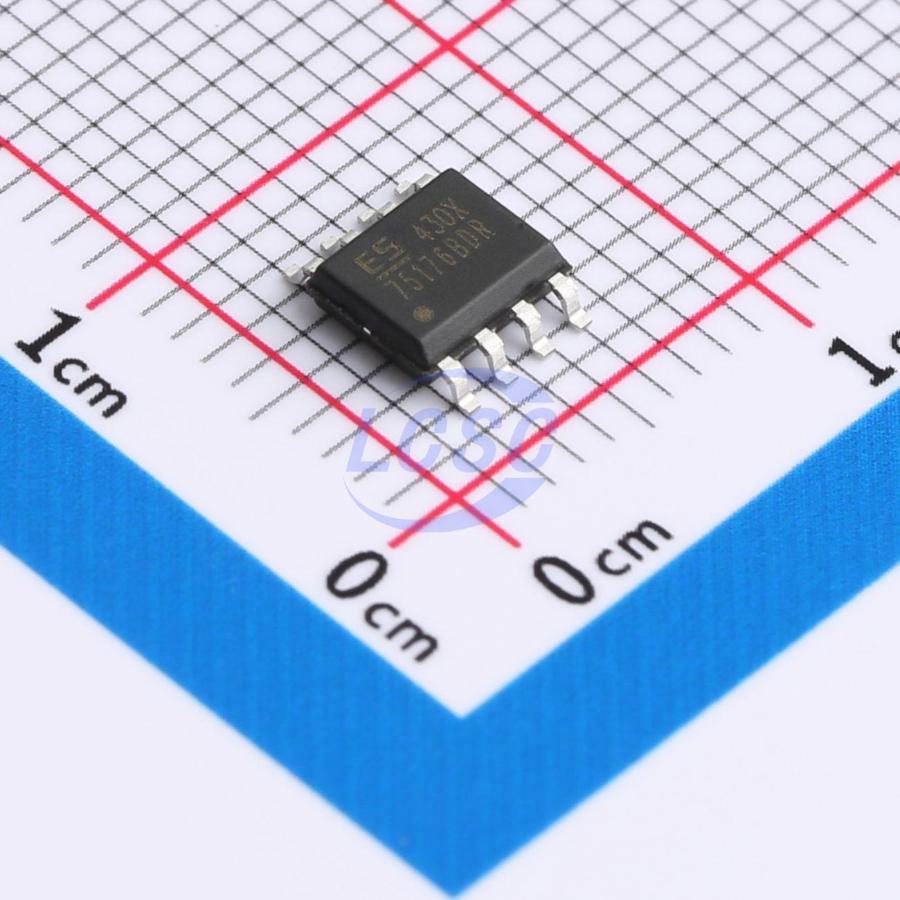

SN75176BDR

SN75176BDR is a RS-485 transceiver operating from a 4.5V~5.5V wide supply voltage, with bus port ESD protection up to 15kV (HBM), ±15V bus voltage range, half-duplex, low power consumption, and fully compliant with TIA/EIA-485 standard requirements. It integrates one driver and one receiver, both of which can be independently enabled or disabled. When both are disabled, the driver and receiver outputs enter a high-impedance state. With 1/8 unit load, up to 32 SN75176BDR transceivers can be connected in parallel on the same communication bus. Error-free data transmission at up to 14Mbps is supported. The operating voltage range is 3.0~5.5V, with fail-safe, current limiting protection, and overvoltage protection features.

Applications

• Bus-type networking
• Daisy-chain networking
• Bus port protection

Key features

• 4.5V~5.5V wide supply range, half-duplex
• Bus port ESD protection up to 15kV HBM
• Bus fault tolerance voltage ±15V
• 1/8 unit load, supports up to 32 devices on the bus
• Driver short-circuit output protection
• Receiver open-circuit failsafe
• High noise immunity
• Integrated transient voltage suppression
• Data transfer rate up to 14Mbps in electrically noisy environments
• Available in DFN3*3-8, MSOP8/VSSOP8 packages
