lingxingicDatasheet (PDF)

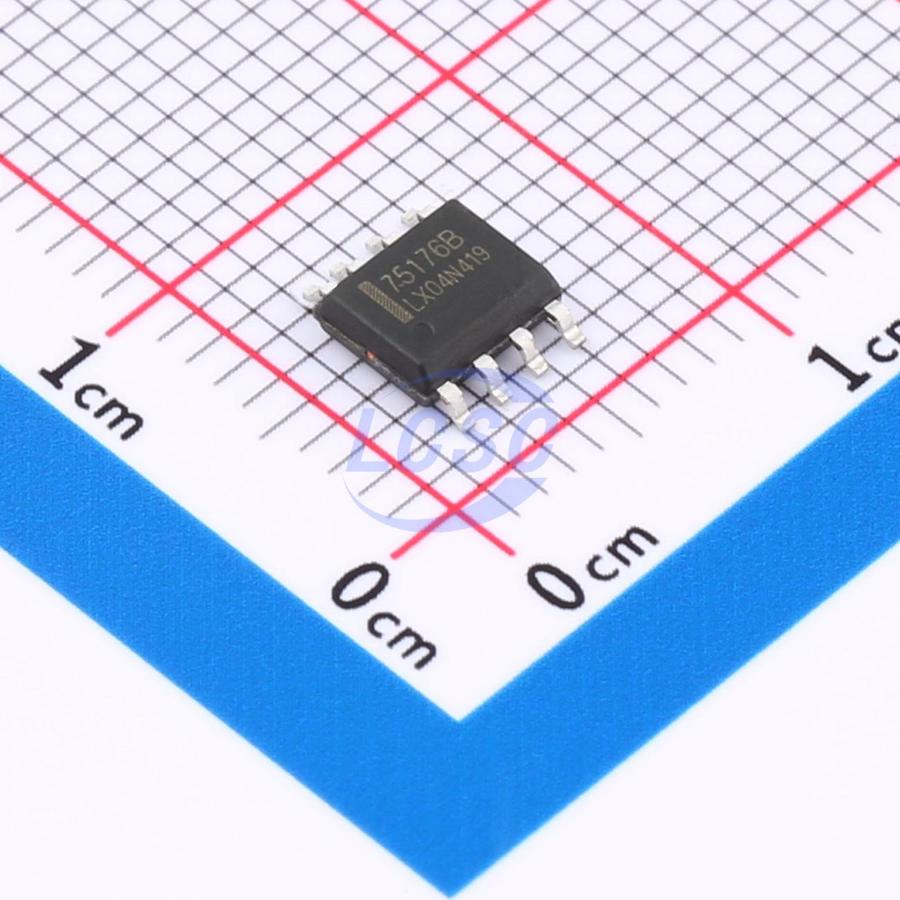

SN75176BDR(LX)
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8RoHSActive
SN75176 (L X) Low-power 10Mbps RS-485 Bus Transceiver with Fail-safe Function
- Manufacturer
- lingxingic
- Manufacturer part #
- SN75176BDR(LX)
- Store part #
- C22466313
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,890 in stock
#C22466313
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.07 | ₹120.35 |
| 50+ | ₹19.14 | ₹957.00 |
| 150+ | ₹17.03 | ₹2,554.50 |
| 500+ | ₹14.39 | ₹7,195.00 |
| 2,500+ | ₹12.75 | ₹31,875.00 |
| 4,000+ | ₹12.04 | ₹48,160.00 |
5 × ₹24.07
₹120.35
excl. GST
₹142.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN75176BDR(LX)
₹120.35 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Number of Nodes
- 256
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Hot-swap protection;Overcurrent Protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 600uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
SN75176 is a 5V-powered, half-duplex RS-485 transceiver with one driver and one receiver.
Key features
- Supply voltage range: 3V~5.5V
- Data rate: 10Mbps
- Up to 256 nodes per bus (1/8 unit load)
- Bus pin protection: ±15kV HBM protection
- Hot-plug: Driver and receiver outputs remain tri-state during power-up/power-down
- Full fail-safe (open, short, terminated) receiver
- Overvoltage and overcurrent protection driver
- Operating temperature range: -40~+85°C
- Package: DIP8/SOP8/MSOP8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3485ESA(LX)#C42403068lingxingic · SOP-8 | lingxingic | SOP-8 | 355 | ₹28.58 · 355 in stock | View |
