TDSEMICDatasheet (PDF)

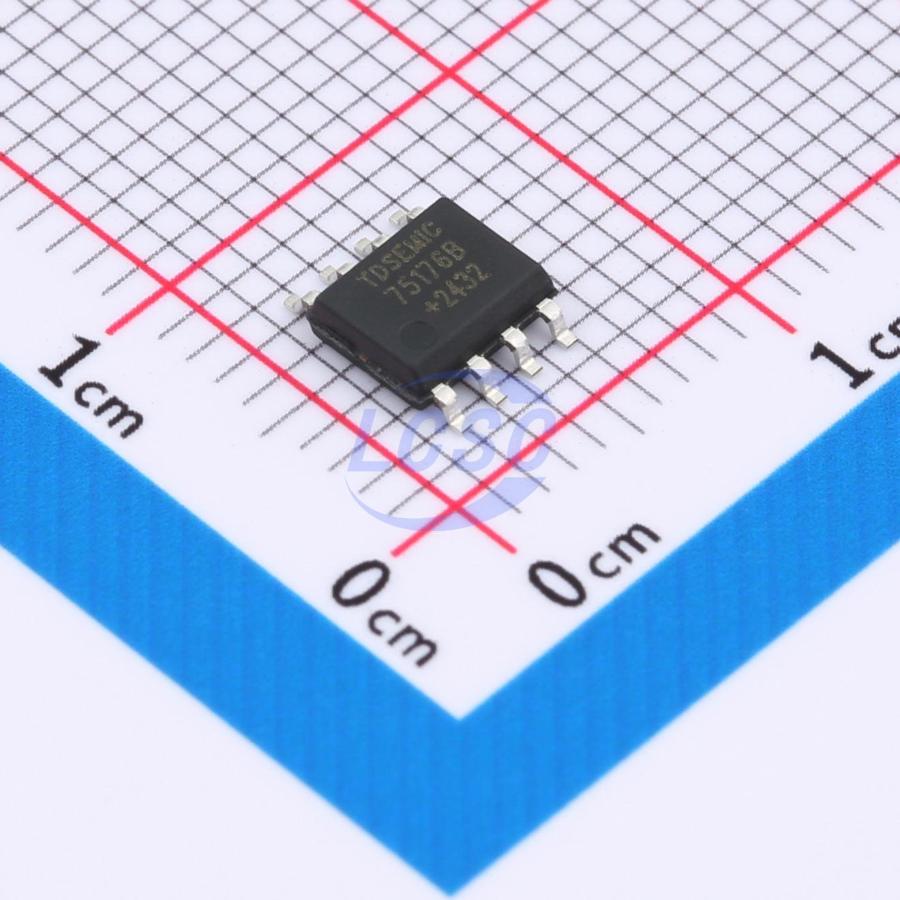

SN75176BDR-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
SN75176BDR
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SN75176BDR-TD
- Store part #
- C41369793
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,485 in stock
#C41369793
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.14 | ₹105.70 |
| 50+ | ₹16.64 | ₹832.00 |
| 150+ | ₹14.71 | ₹2,206.50 |
| 500+ | ₹12.30 | ₹6,150.00 |
| 2,500+ | ₹11.23 | ₹28,075.00 |
| 5,000+ | ₹10.58 | ₹52,900.00 |
5 × ₹21.14
₹105.70
excl. GST
₹124.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN75176BDR-TD
₹105.70 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V;5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.189 g
Overview
This transceiver IC is designed for RS-485 and RS-422 communication systems, supporting data rates up to 2.5Mbps in half-duplex operation. The device features Driver Enable (DE) and Receiver Enable (RE) pins; when disabled, both driver and receiver outputs enter a high-impedance state. Additionally, the IC integrates a failsafe function — when the receiver inputs are open or shorted, the receiver output is held high.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level translation
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ±1500V HBM ESD protection
- Three-state output
- Half-duplex communication
- Bus supports up to 128 transceivers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX485ESA-TD#C41369783TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 9,030 | ₹31.71 · 9,030 in stock | View |
 | MAX487CSA-TD#C41369784TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,130 | ₹34.99 · 2,130 in stock | View |
 | MAX487ESA-TD#C41369787TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,305 | ₹44.57 · 2,305 in stock | View |
 | SN75LBC184DR-TD#C41369795TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 3,795 | ₹19.08 · 3,795 in stock | View |
 | SP485EEN-TD#C41369800TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 4,435 | ₹26.68 · 4,435 in stock | View |
