XBLW

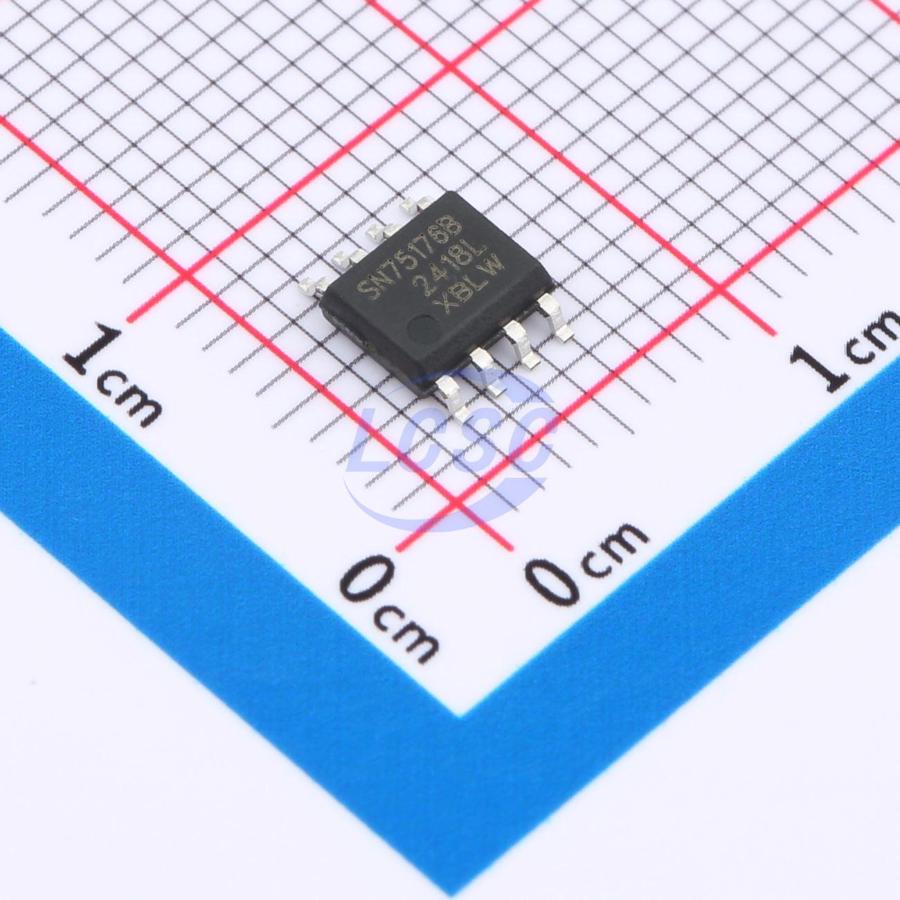

SN75176BDR(XBLW)

4.75V~5.25V Transceiver 32 SOP-8 Drivers, Receivers, Transceivers RoHS

SOP-8ROHS CompliantActive

Multipoint RS-485/RS-422

Manufacturer: XBLW
Manufacturer part #: SN75176BDR(XBLW)
Store part #: C22451414
Package / case: SOP-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,715 in stock

#C22451414

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹16.17	₹80.85
50+	₹12.78	₹639.00
150+	₹11.09	₹1,663.50
500+	₹9.82	₹4,910.00
2,500+	₹8.80	₹22,000.00
5,000+	₹8.30	₹41,500.00

Quantity (min 5, multiples of 5)

5 × ₹16.17

₹80.85

excl. GST

₹95.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN75176BDR(XBLW)

₹80.85 for 5 + GST

Specifications

Voltage - Supply: 4.75V~5.25V
Type: Transceiver
Number of Nodes: 32
Operating Temperature: 0℃~+70℃
Number of Drivers: 1
Features: Enable shutdown;Thermal shutdown protection
Number of Receivers: 1
Quiescent Supply Current: 55mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.192 g

Overview

The SN75176B / SN65176B is a high speed differential TRI-STATE bus/line transceiver designed to meet the requirements of EIA standard RS485 with extended common mode range (+12V to −7V), for multipoint data transmission. In addition, it is compatible with RS-422. The driver and receiver outputs feature TRI-STATE capability, for the driver outputs over the entire common mode range of +12V to -7V. Bus contention or fault situations that cause excessive power dissipation within the device are handled by a thermal shutdown circuit, which forces the driver outputs into the high impedance state. DC specifications are guaranteed over the 0 to 70°C temperature and 4.75V to 5.25V supply voltage range.

Key features

Meets EIA Standard RS485 for Multipoint Bus Transmission and is Compatible with RS-422.
Small Outline (SOIC) Package Option Available for Minimum Board Space.
22 ns Driver Propagation Delays.
Single +5V Supply.
−7V to +12V Bus Common Mode Range Permits ±7V Ground Difference Between Devices on the Bus.
Thermal Shutdown Protection.
High Impedance to Bus with Driver in TRISTATE or with Power Off, Over the Entire Common Mode Range Allows the Unused Devices on the Bus to be Powered Down.
Combined Impedance of a Driver Output and Receiver Input is Less Than One RS485 Unit Load, Allowing up to 32 Transceivers on the Bus.
70 mv Typical Receiver Hysteresis.
