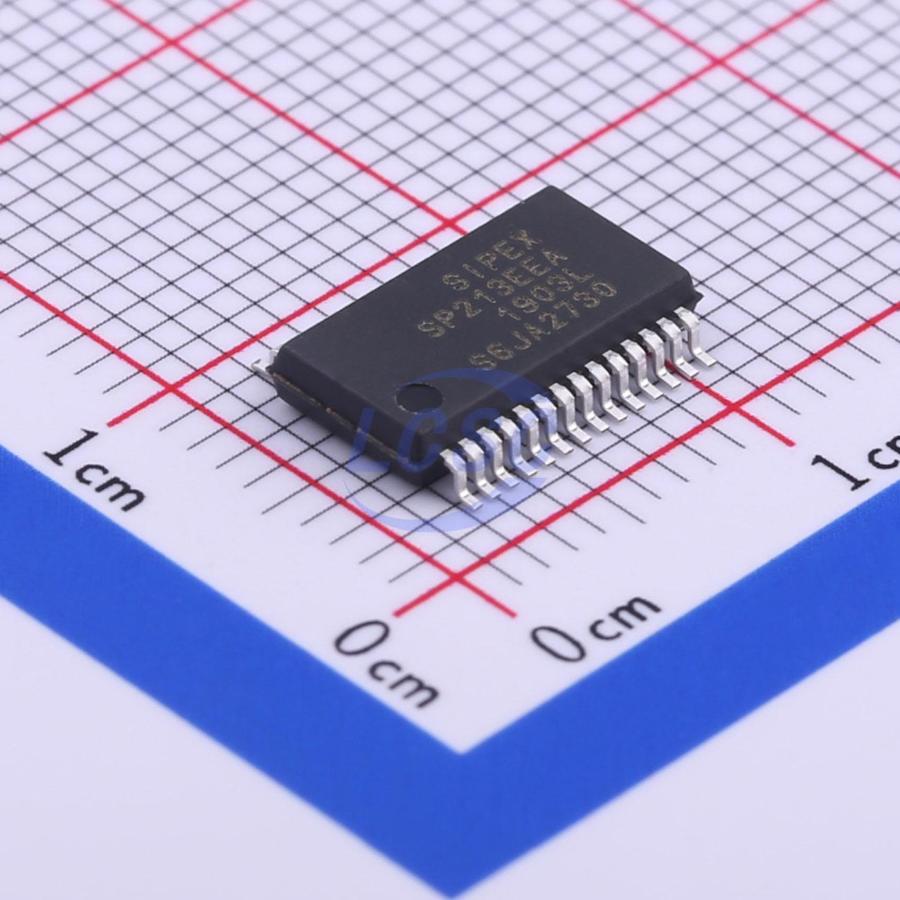

SP213EEA-L/TR

Key features

• Enhanced transceivers intended for use in RS - 232 and V.28 serial communication
• Very low power consumption and single - supply operation
• On - board charge pump circuitry generates fully compliant RS - 232 voltage levels using small and inexpensive 0.1μF charge pump capacitors; no external +12V and - 12V supplies required
• The SP211E and SP213E feature a low - power shutdown mode, which reduces power supply drain to 1μA
• SP213E includes two receivers that remain active during shutdown to monitor for signal activity
• Pin - to - pin compatible with previous SP208, SP211 and SP213 as well as industry - standard competitor devices
• Driver output and receiver input pins are protected against ESD to over ±15KV for both Human Body Model and IEC61000 - 4 - 2 Air Discharge test methods
• Data rates of 120kbps are guaranteed, compatible with high speed modems and PC remote - access applications
• Receivers incorporate hysteresis for clean reception of slow moving signals
• Meets all EIA - 232 and ITU V.28 specifications
• Single +5V supply operation
• 3mA typical static supply current
• 4×0.1μF external charge pump capacitors
• 120kbps transmission rates
• Standard SOIC and SSOP footprints
• Tri - state / Rx enable (SP211E & SP213E)
• Improved ESD specifications: ±15KV Human Body Model; ±15kV IEC6100 - 4 - 2 Air Discharge; ±8kV IEC6100 - 4 - 2 Contact Discharge
