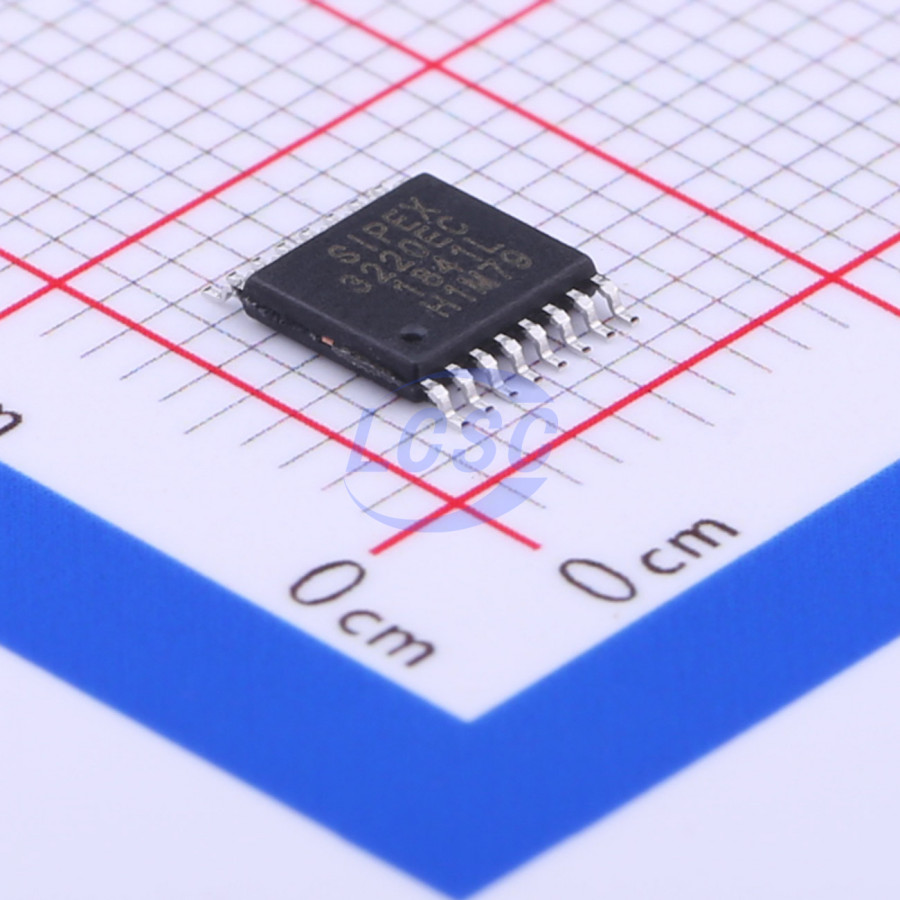

SP3220ECY-L/TR

The SP3220E devices are RS-232 driver/receiver solutions intended for portable or hand-held applications such as palmtop computers, instrumentation and consumer products. These devices incorporate a high-efficiency, charge-pump power supply that allows the SP3220E devices to deliver true RS-232 performance from a single power supply ranging from +3.0V to +5.0V. This charge pump requires only 0.1µF capacitors in 3.3V operation. The ESD tolerance of these devices are over ±15kV for both Human Body Model and IEC61000-4-2 Air discharge test methods. All devices have a low-power shutdown mode where the driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1µA.

Applications

• notebook or palmtop computers
• portable or hand - held applications

Key features

• Meets all EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply • Interoperable with RS-232 and V.28 at +2.7V
• Supports High Serial Data Rates: • 120kbps SP3220E • 250kbps SP3220EB • 1Mbps SP3220EU
• 1µA Low Power Shutdown Mode
• Footprint Compatible with MAX3221E, ISL3221
• 4 x 1.0µF External Charge Pump Capacitors
• Improved ESD Specifications: +15kV Human Body Model +15kV IEC61000-4-2 Air Discharge ±8kV IEC61000-4-2 Contact Discharge
• Now Available in Lead Free Packaging
