MSKSEMI

SP3232EEN-MS

Transceiver 3V~5.5V 120Kbps SOP-16 Drivers, Receivers, Transceivers

SOP-16RoHSActive

SP3232EE Product specification

Manufacturer: MSKSEMI
Manufacturer part #: SP3232EEN-MS
Store part #: C7434434
Package / case: SOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,067 in stock

#C7434434

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹65.04	₹65.04
10+	₹51.33	₹513.30
30+	₹45.25	₹1,357.50
100+	₹38.06	₹3,806.00
500+	₹33.06	₹16,530.00
1,000+	₹31.10	₹31,100.00

Quantity (min 1)

1 × ₹65.04

₹65.04

excl. GST

₹76.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

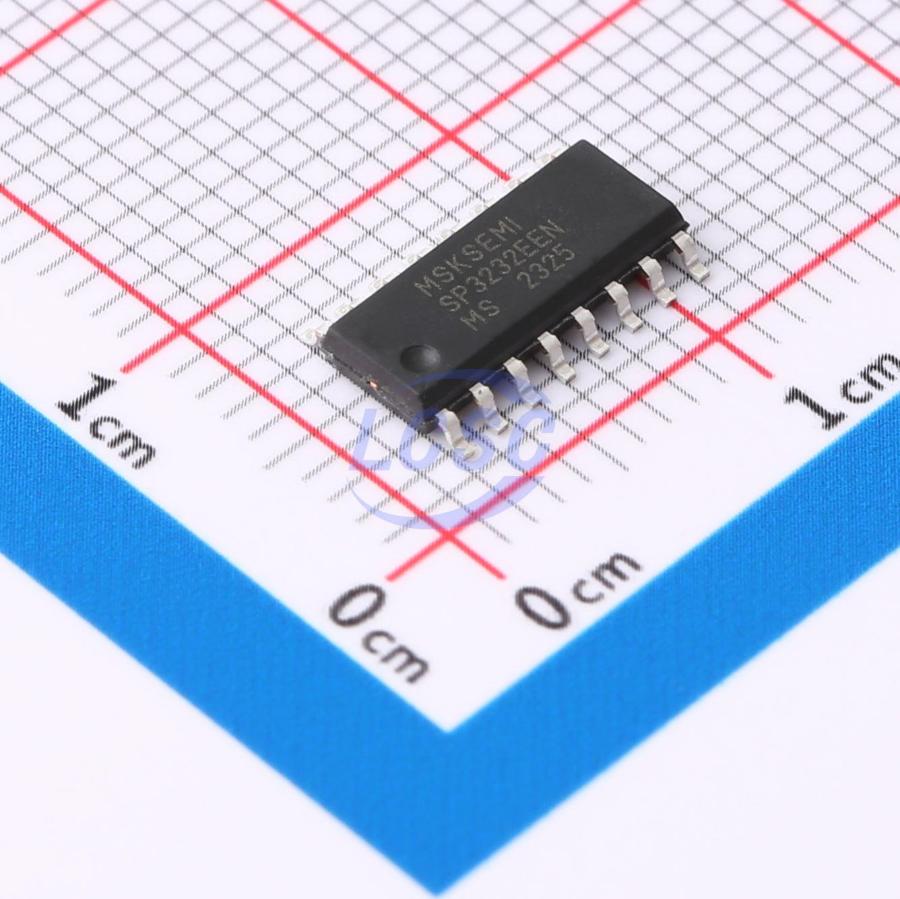

SP3232EEN-MS

₹65.04 for 1 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 120Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Features: Short-Circuit Protection
Number of Receivers: 2
Quiescent Supply Current: 2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.407 g
