GREENMICRODatasheet (PDF)

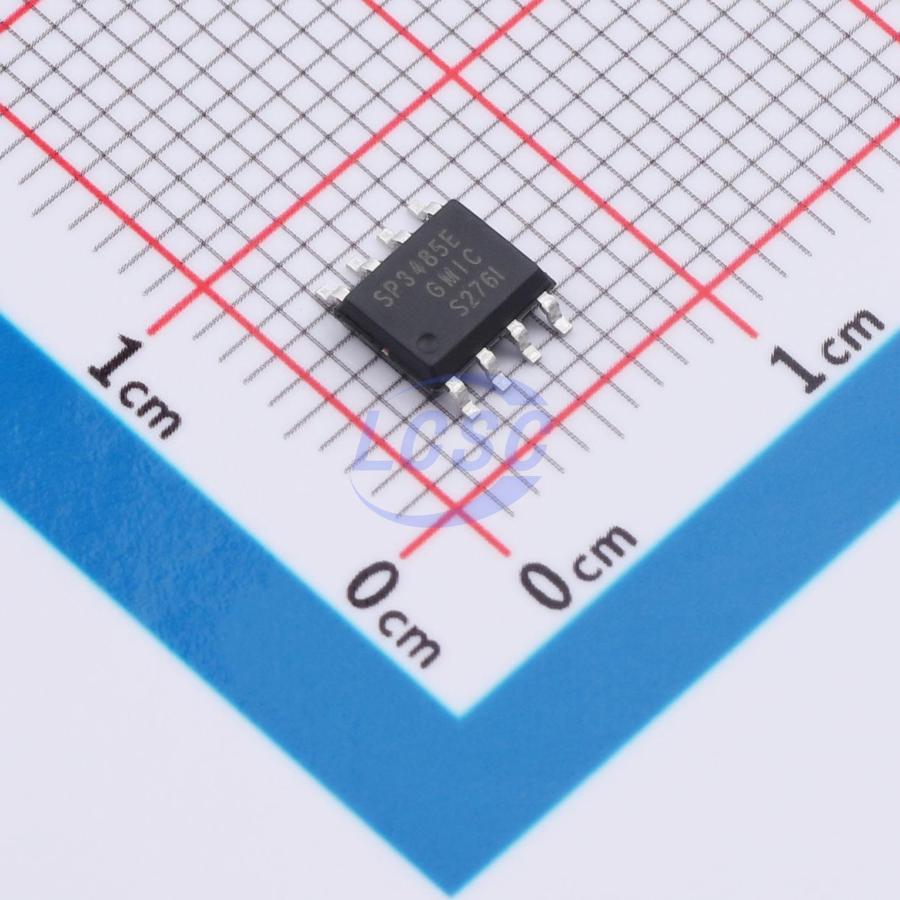

SP3485EBS
3V~5.5V Transceiver 10Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- SP3485EBS
- Store part #
- C53055747
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,020 in stock
#C53055747
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.24 | ₹91.20 |
| 50+ | ₹14.49 | ₹724.50 |
| 150+ | ₹12.61 | ₹1,891.50 |
| 500+ | ₹11.19 | ₹5,595.00 |
| 2,500+ | ₹10.07 | ₹25,175.00 |
| 5,000+ | ₹9.50 | ₹47,500.00 |
5 × ₹18.24
₹91.20
excl. GST
₹107.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP3485EBS
₹91.20 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 520uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.275 g
Overview
SP3485E is a high-speed transceiver for RS-485 communications, integrating one driver and one receiver. The device features a failsafe circuit that ensures the receiver output remains logic high when the receiver inputs are open or shorted. This means that if all drivers on the bus are disabled (high-impedance state), the receiver output will be logic high. The SP3485E driver slew rate is not limited, enabling data rates up to 10Mbps. In addition, the receiver features 1/8 unit load input impedance, allowing up to 256 transceivers to be connected on the bus.
Applications
- RS-485 communication
- Level translator
- Security equipment
- Industrial control equipment
- Energy meter
Key features
- Fail-safe circuit
- Low power consumption
- Up to 256 transceivers on the bus
- Maximum data rate: 10Mbps (Vcc=5V)
- ESD protection: ≥±15KV
- SOP8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP485EENS(GMIC)#C55374975GREENMICRO · SOP-8 | GREENMICRO | SOP-8 | 2,120 | ₹21.80 · 2,120 in stock | View |
