HGSEMIDatasheet (PDF)

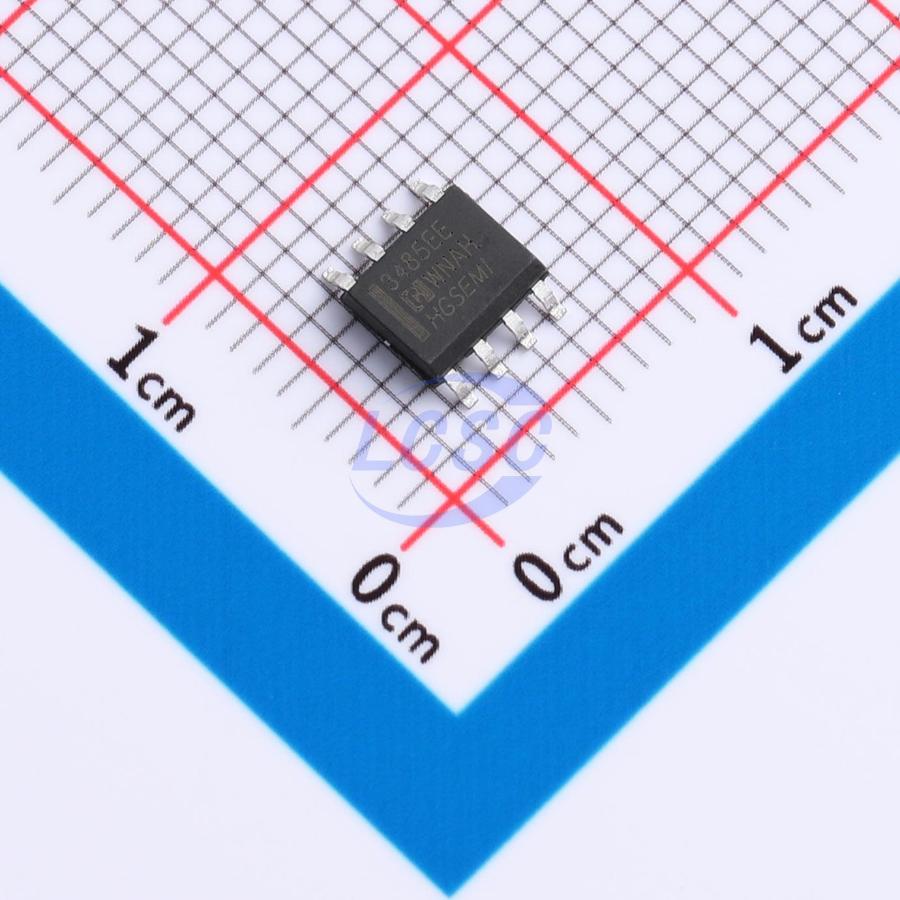

SP3485EEN/HG
3V~3.6V Transceiver 12Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- SP3485EEN/HG
- Store part #
- C53049639
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C53049639
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.40 | ₹117.00 |
| 50+ | ₹18.48 | ₹924.00 |
| 150+ | ₹16.37 | ₹2,455.50 |
| 500+ | ₹13.73 | ₹6,865.00 |
| 2,500+ | ₹12.56 | ₹31,400.00 |
| 5,000+ | ₹11.85 | ₹59,250.00 |
5 × ₹23.40
₹117.00
excl. GST
₹138.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP3485EEN/HG
₹117.00 for 5 + GST
Specifications
- Voltage - Supply
- 3V~3.6V
- Type
- Transceiver
- Data Rate
- 12Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection;Low-power mode
- Number of Receivers
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.345 g
Overview
SP3485E is a 3.3V, half-duplex, low-power RS-485 transceiver compliant with TIA/EIA-485. The device integrates one driver and one receiver, both of which can be independently enabled or disabled, presenting a high-impedance state when disabled. The receiver features 1/8 unit load high input impedance, supporting up to 256 transceivers on the same bus for error-free data transmission at up to 12Mbps. Operating voltage ranges from 3.0V to 3.6V, with integrated failsafe, over-temperature protection, current-limiting protection, and overvoltage protection.
Applications
- Bus-type communication network
- Daisy-chain communication network
Key features
- 3.3V supply voltage, half-duplex operation
- 1/8 unit load, supports up to 256 devices on the bus
- Driver with short-circuit output protection
- Integrated over-temperature protection
- Low-power shutdown mode support
- Receiver with open-circuit failsafe protection
- High noise immunity
- Integrated transient voltage suppression
- Data transfer rate up to 12Mbps in electrically noisy environments
- SOP-8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HGX3485EIM/TR#C492114HGSEMI · SOP-8 | HGSEMI | SOP-8 | 25 | ₹39.35 · 25 in stock | View |
 | MAX3485EIM/TR#C519082HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,730 | ₹40.58 · 2,730 in stock | View |
 | SP3485EIM/TR#C519086HGSEMI · SOP-8 | HGSEMI | SOP-8 | 9,640 | ₹35.59 · 9,640 in stock | View |
| MAX3485ESA/HG#C52953105HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,020 | ₹36.82 · 2,020 in stock | View | |
 | MAX3485ECM/TR#C46552319HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,930 | ₹26.16 · 1,930 in stock | View |
