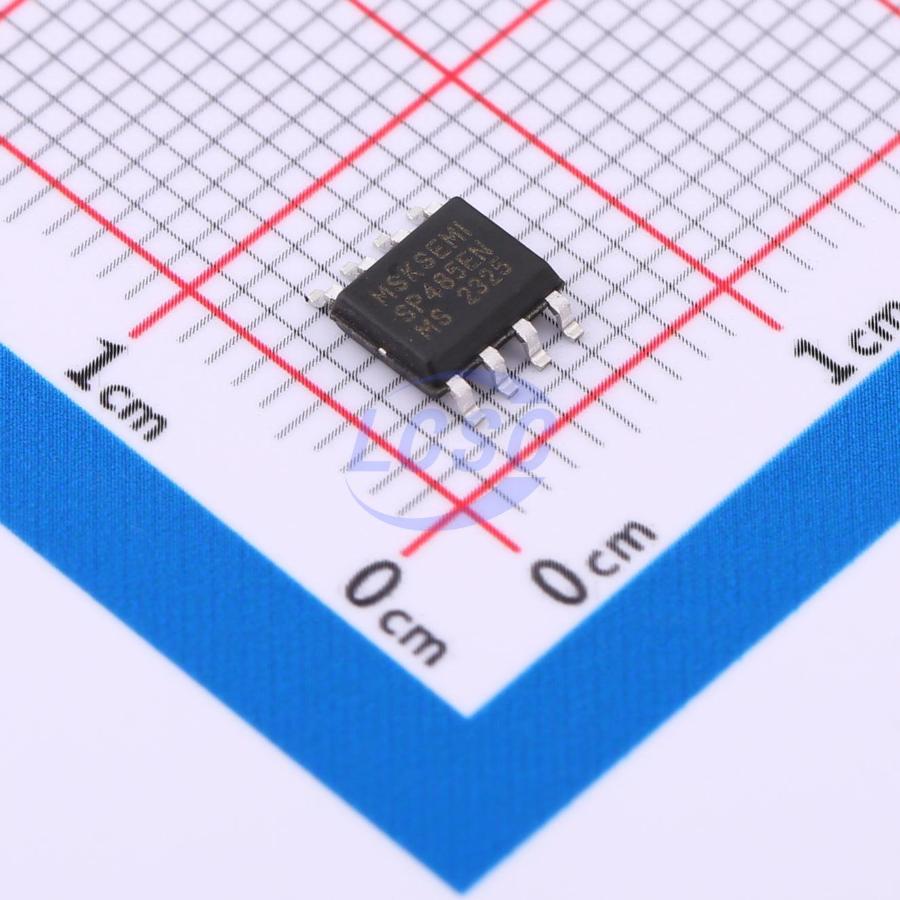

SP485EN-MS

SP485E is a 5V-powered, half-duplex, low-power, slew-rate-limited RS-485 transceiver fully compliant with TIA/EIA-485 standards. SP485E integrates one driver and one receiver, both of which can be independently enabled or disabled. When both are disabled, the driver and receiver outputs enter a high-impedance state. SP485E features 1/8 unit load, allowing up to 256 transceivers to be connected on the same communication bus. The slew-rate-limited driver significantly reduces EMI and reflections caused by improperly terminated cables, achieving a communication rate of 2.5Mbps with 32 nodes. SP485E operates over a supply voltage range of 4.75~5.25V, with fail-safe protection, over-temperature protection, current-limiting protection, over-voltage protection, and hot-swap capability on control pins. SP485E offers excellent ESD protection, with HBM ±15KV, contact discharge per IEC61000-4-2 ±15KV.

Applications

• Meter reading communication for electricity, water, and gas meters
• Level shifting
• Industrial control
• Smart instrumentation
• Central air conditioning
• EMI-sensitive transceiver applications
• Fire alarm systems
• Lighting systems
• Elevator controllers
• Access control and security

Key features

• 5V supply voltage, half-duplex
• 1/8 unit load, supports up to 256 devices on the bus
• Driver short-circuit output protection
• Over-temperature protection
• Low-power shutdown mode
• /RE, DE pins support hot-swap inputs
• Receiver open-circuit fail-safe
• High noise immunity
• Integrated transient voltage suppression
• 32-node communication up to 2.5Mbps
• A, B port protection: contact discharge ±15KV; HBM ±15KV
