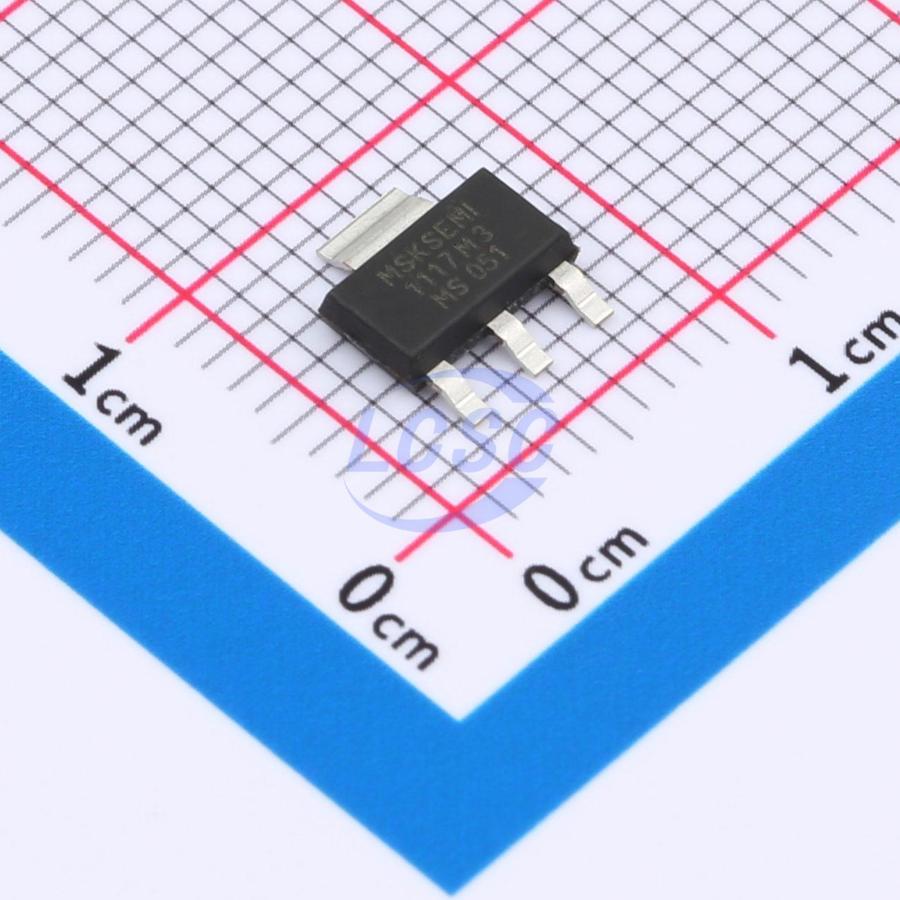

SPX1117M3-L/TR(MS)
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SOT-223
SOT-223RoHSActive
Low Dropout (LDO) Three-Terminal Voltage Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SPX1117M3-L/TR(MS)
- Store part #
- C22462595
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,530 in stock
#C22462595
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.82 | ₹98.20 |
| 100+ | ₹7.74 | ₹774.00 |
| 300+ | ₹6.69 | ₹2,007.00 |
| 2,500+ | ₹5.91 | ₹14,775.00 |
| 5,000+ | ₹5.29 | ₹26,450.00 |
| 10,000+ | ₹4.97 | ₹49,700.00 |
10 × ₹9.82
₹98.20
excl. GST
₹115.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SPX1117M3-L/TR(MS)
₹98.20 for 10 + GST
Specifications
- Output Voltage
- 1.25V~12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Ta)
- Supply Current (Iq)
- 12mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Features
- Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.211 g
Overview
SPX1117M3-L-X-X/TR(MS) is a series of low dropout regulators with a 1.3V dropout voltage at 1A load current. Compared to competitors' 5mA, the SPX1117M3-L-X-X/TR(MS) features an extremely low standby current of only 2mA. In addition to fixed output versions (1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), the SPX1117M3-L-X-X/TR(MS) is also available in an adjustable version that provides output voltages from 1.25V to 12V using just two external resistors. The SPX1117M3-L-X-X/TR(MS) offers thermal shutdown protection to ensure stability of the die and power supply system. It employs trimming technology to guarantee output voltage accuracy within 2%. Other output voltage accuracy options, such as 1%, are available upon request. The SPX1117M3-L-X-X/TR(MS) comes in a SOT-223 package.
Applications
- Computer motherboard and graphics card power management
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
- Post-regulator for switching power supplies
Key features
- Output current: 1A
- Operating input voltage range: 15V
- Line regulation: 0.03%/V (typical)
- Standby current: 2mA (typical)
- Load regulation: 0.2%/A (typical)
- Ambient temperature: -40℃~85℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-ADJ#C5140055MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 680 | ₹9.06 · 680 in stock | View |
 | MS1117-ADJ#C47020982MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 1,210 | ₹7.37 · 1,210 in stock | View |
