MaxLinear

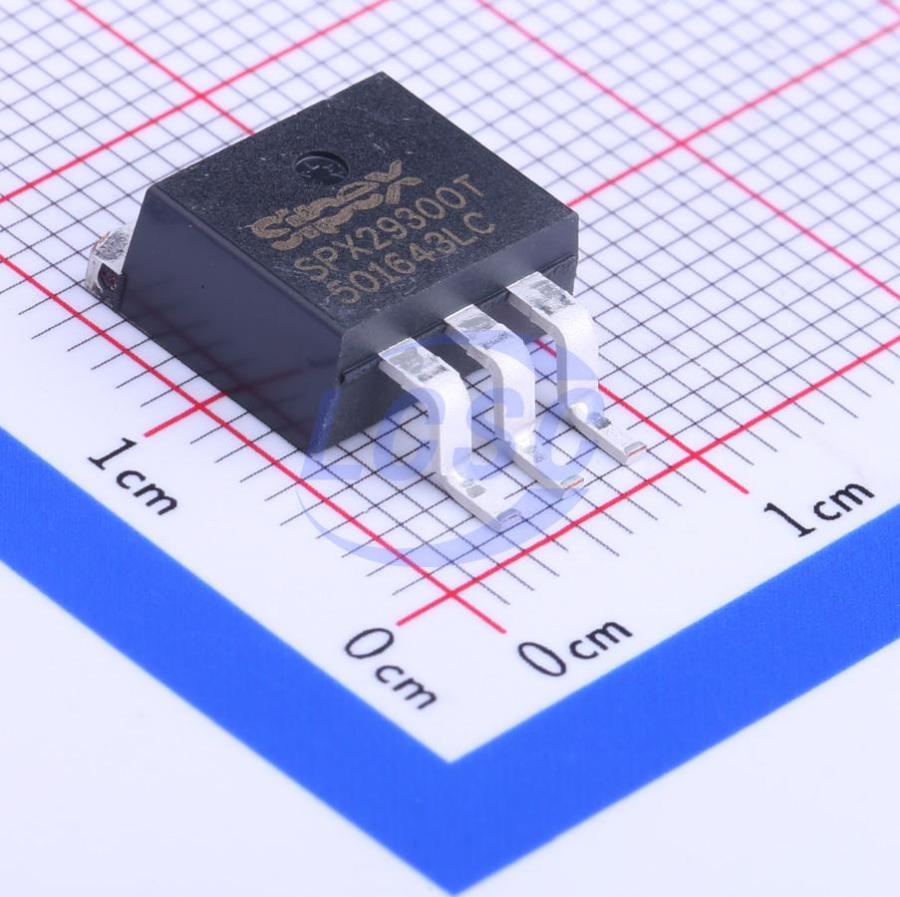

SPX29300T-L-5-0/TR

5V Positive Fixed TO-263-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-263-3ROHS CompliantActive

Manufacturer: MaxLinear
Manufacturer part #: SPX29300T-L-5-0/TR
Store part #: C24592
Package / case: TO-263-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,356 in stock

#C24592

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
1+	₹275.90	₹275.90
10+	₹238.51	₹2,385.10
30+	₹218.07	₹6,542.10
100+	₹194.81	₹19,481.00
500+	₹184.37	₹92,185.00
1,000+	₹179.81	₹1,79,810.00

Quantity (min 1)

1 × ₹275.90

₹275.90

excl. GST

₹325.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 500 per reel

SPX29300T-L-5-0/TR

₹275.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Output Configuration: Positive
Output Current: 3A
Operating Voltage: 16V
Features: Reverse polarity voltage protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 2.228 g

Overview

The SPX29300/01/02/03 are 3A, highly accurate voltage regulators with a low drop out voltage of 450mV dropout (typical) @ 3A. These regulators are specifically designed for low voltage applications that require a low dropout voltage and a fast transient response. They are fully fault protected against over-current, reverse battery, and positive and negative voltage transients. On-Chip trimming adjusts the reference voltage to 1% initial accuracy. Other features in the 5 pin versions include Enable, and Error Flag.

Applications

Powering VGA & Sound Card
Power PC Supplies
SMPS Post Regulator
High Efficiency “Green” Computer Systems
High Efficiency Linear Power Supplies
Constant Current Regulators
Adjustable Power Supplies
Battery Charger

Key features

Adjustable Output Down To 1.25V
1% Output Accuracy
Output Current of 3A
Low Dropout Voltage of 450mV @ 3A
Extremely Tight Load and Line Regulation
Extremely Fast Transient Response
Reverse-Battery Protection
Zero Current Shutdown (5 pin version)
Error Flag Signal Output for Out of Regulation State (5 pin version)
Standard TO-220 and TO-263 Packages
Now Available in Lead Free Packaging

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MIC29300-5.0WU-TR#C632729MICROCHIP · TO-263-3	MICROCHIP	TO-263-3	513	₹740.72 · 513 in stock	View
LM39300R-5.0#C28455529HTC · TO-263-3L	HTC	TO-263-3L	1	₹77.75 · 1 in stock	View
MIC29300S-5.0/TR#C49328977HGSEMI · TO-263-3	HGSEMI	TO-263-3	1,423	₹144.72 · 1,423 in stock	View
XBL29300S-5.0DTR#C54973560XBLW · TO-263-3	XBLW	TO-263-3	598	₹98.22 · 598 in stock	View
LM1085ISX-5.0/NOPB#C129950TI · TO-263-3	TI	TO-263-3	286	₹333.89 · 286 in stock	View
