MaxLinearDatasheet (PDF)

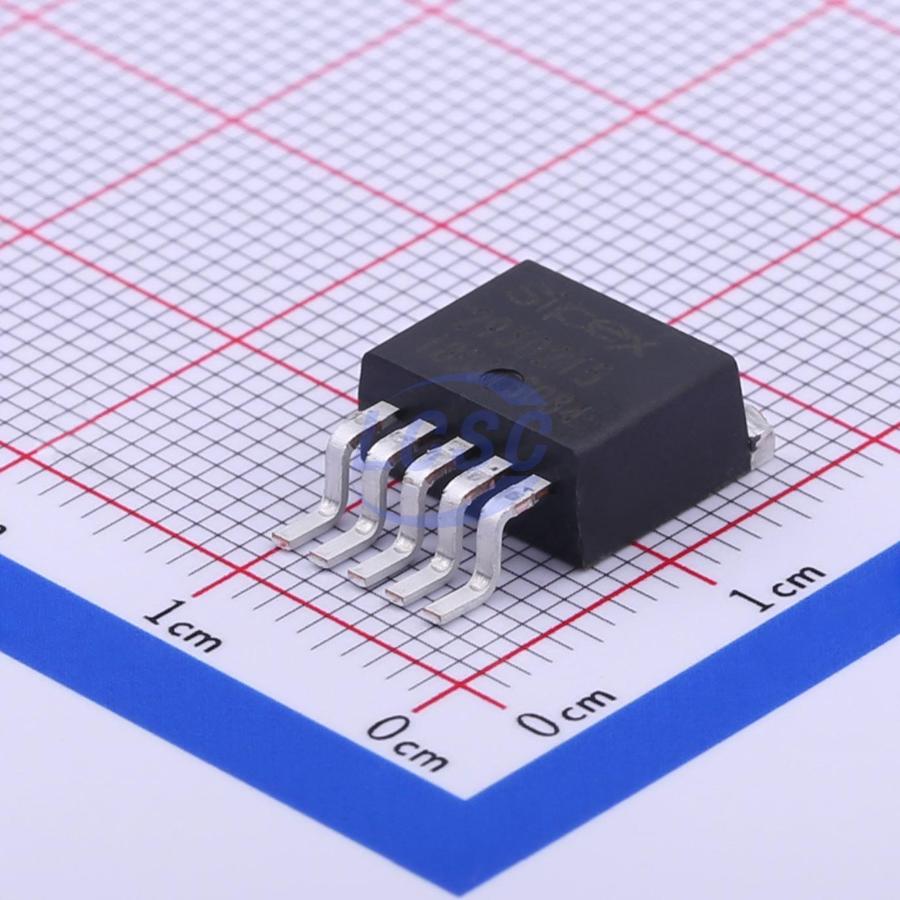

SPX29302T5-L/TR
1.25V~16V Positive Adjustable TO-263-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-5ROHS3 CompliantActive
3A Low Dropout Voltage Regulator
- Manufacturer
- MaxLinear
- Manufacturer part #
- SPX29302T5-L/TR
- Store part #
- C9013
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,442 in stock
#C9013
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.02 | ₹156.02 |
| 10+ | ₹137.09 | ₹1,370.90 |
| 30+ | ₹119.03 | ₹3,570.90 |
| 100+ | ₹105.54 | ₹10,554.00 |
| 500+ | ₹96.83 | ₹48,415.00 |
| 1,000+ | ₹94.00 | ₹94,000.00 |
1 × ₹156.02
₹156.02
excl. GST
₹184.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per reel
SPX29302T5-L/TR
₹156.02 for 1 + GST
Specifications
- Output Voltage
- 1.25V~16V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 3A
- Operating Voltage
- 16V
- Features
- Over Current Protection;Reverse polarity voltage protection;Thermal shutdown;Enable control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.84 g
Overview
The SPX29300/01/02 are 3A, highly accurate voltage regulators with a low dropout voltage of 600mV (typical) at 3A. These regulators are specifically designed for low voltage applications that require a low dropout voltage and a fast transient response. They are fully fault protected against overcurrent, reverse battery, and positive and negative voltage transients. On-Chip trimming adjusts the reference voltage to |% initial accuracy. The SPX29300 is offered in a 3-pin TO-263 package, the SPX29301 and SPX29302 are offered in a 5-pin TO-263 package.
Applications
- Adjustable Power Supplies
- Constant Current Regulators
- Audio and Video/Graphic Cards
- Battery Chargers
Key features
- 3A Guaranteed Output Current
- Low Dropout Voltage of 600mV @ 3A
- Adjustable Output down to 1.25V
- 106 Output Accuracy
- Tight Load and Line Regulation
- Fast Transient Response
- Reverse Battery Protection
- Zero Current Shutdown (SPX29301/02)
- Power Good Flag (SPX29301)
- Lead Free 3-Pin TO-263 and 5-pin TO263 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XRP29302ETBTR-L#C85351MaxLinear · TO-263-5 | MaxLinear | TO-263-5 | 112 | ₹356.67 · 112 in stock | View |
 | MIC29302WU#C18221475TECH PUBLIC · TO-263-5 | TECH PUBLIC | TO-263-5 | 6,867 | ₹119.68 · 6,867 in stock | View |
 | HX29302-TS#C19186062ZHHXDZ · TO-263 | ZHHXDZ | TO-263 | 788 | ₹75.83 · 788 in stock | View |
 | LM39302S/TR#C19193456HGSEMI · TO-263-5 | HGSEMI | TO-263-5 | 155 | ₹107.06 · 155 in stock | View |
 | MIC29302WU(MS)#C20538959MSKSEMI · TO-263-5 | MSKSEMI | TO-263-5 | 75 | ₹124.12 · 75 in stock | View |
