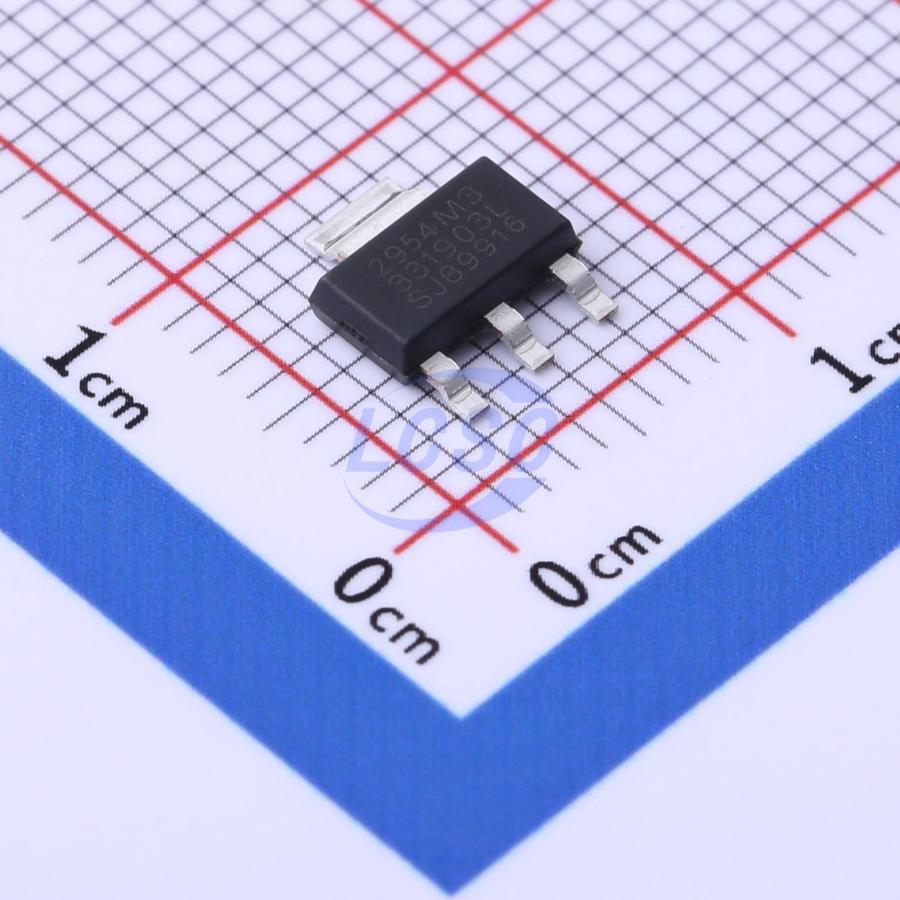

SPX2954M3-L-3-3/TR

The SPX2954 and SPX2954A are low power voltage regulators. These devices are an excellent choice for use in battery-powered applications such as cordless telephones, radio control systems, and portable computers. The SPX2954 and SPX2954A feature low quiescent current and low dropout voltage (typ. 20mV at 100μA and 310mV at 250mA). This includes a tight initial tolerance (0.5% for SPX2954A), extremely good load and line regulation (0.05% typ.), and very low output temperature coefficient 20 ppm/°C typ.), making the SPX2954/SPX2954A useful as a low-power voltage reference. The error flag output feature is used as a power-on reset for warning of a low output voltage, due to a falling input voltage. The logic-compatible shutdown feature enables the regulator to be switched ON and OFF. The SPX2954/SPX2954A is offered in a 3-pin SOT-223 package and an 8-pin SOIC package.

Key features

• 5.0V and 3.3V versions at 250mA output
• Accurate 0.5% for SPX2954A
• Very low quiescent current
• Low dropout: 310mV at 250mA
• Extremely tight load and line regulation
• Very low temperature coefficient
• Current and thermal limiting
• Need only 1μF for stability
• Direct replacement for LP2954
• Error flag warns of output dropout
• Logic-controlled electronic shutdown
• Programmable output from 1.24V to 30V
