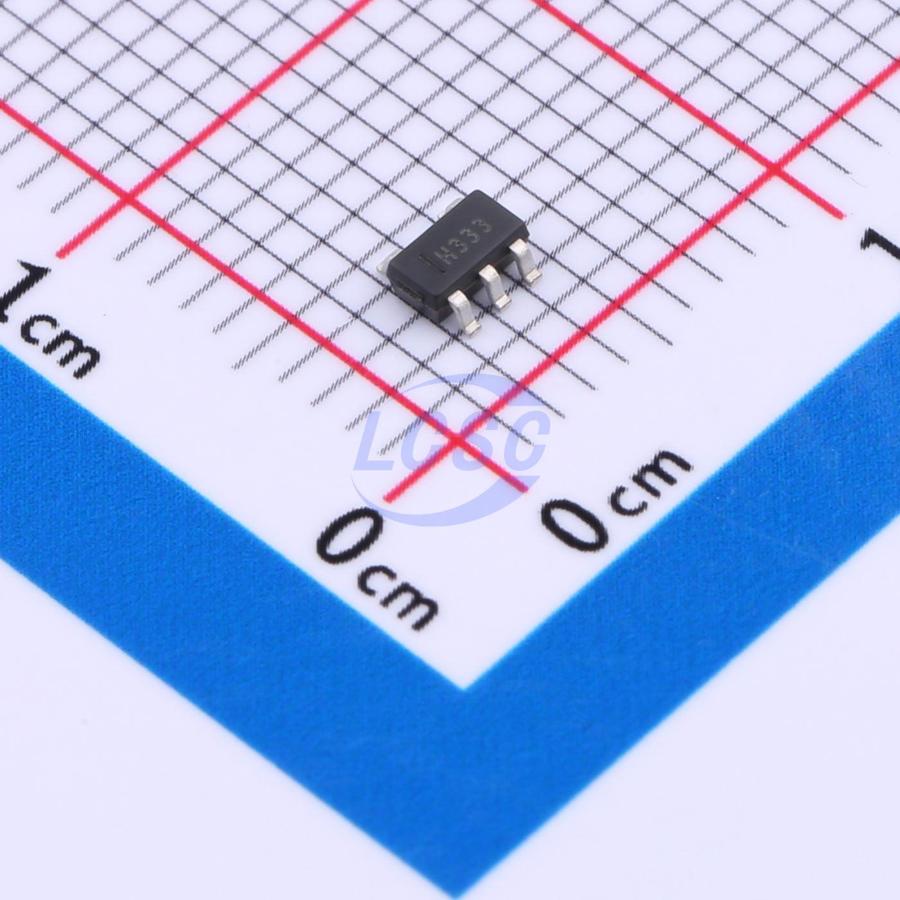

MaxLinear

SPX3819M5-L-2-5/TR

2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS CompliantActive

500mA Low-Noise LDo Voltage Regulator

Manufacturer: MaxLinear
Manufacturer part #: SPX3819M5-L-2-5/TR
Store part #: C3028968
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,085 in stock

#C3028968

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹48.91	₹244.55
50+	₹38.47	₹1,923.50
150+	₹34.00	₹5,100.00
500+	₹28.42	₹14,210.00
3,000+	₹24.70	₹74,100.00
6,000+	₹23.21	₹1,39,260.00

Quantity (min 5, multiples of 5)

5 × ₹48.91

₹244.55

excl. GST

₹288.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SPX3819M5-L-2-5/TR

₹244.55 for 5 + GST

Specifications

Output Voltage: 2.5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 90uA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 16V
Features: Enable control;Reverse polarity voltage protection;Thermal shutdown;Noise bypass terminal;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The SPX3819 is a positive voltage regulator with a low dropout voltage and low noise output. In addition, this device offers a very low ground current of 800μA at 100mA output. The SPX3819 has an initial tolerance of less than 1% max and a logic compatible ON/OFF switched input. When disabled, power consumption drops to nearly zero. Other key features include reverse battery protection, current limit, and thermal shutdown. The SPX3819 includes a reference bypass pin for optimal low noise output performance. With its very low output temperature coefficient, this device also makes a superior low power voltage reference. The SPX3819 is an excellent choice for use in battery-powered applications such as cordless telephones, radio control systems, and portable computers. It is available in several fixed output voltage options or with an adjustable output voltage. This device is offered in 8 pin NSOIC, 8 pin DFN and 5-pin SOT-23 packages.

Applications

Portable Consumer Equipment
Portable Instrumentation
Industrial Equipment
SMPS Post Regulators

Key features

Low Noise: 40μV Possible
High Accuracy: ±1%
Reverse Battery Protection
Low Dropout: 340mV at Full Load
Low Quiescent Current: 90μA
Zero Off-Mode Current
Fixed & Adjustable Output Voltages: - 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V & 5.0V Fixed Output Voltages - ≥1.235V Adjustable Output Voltages
Available in RoHS Compliant, Lead Free Packages: - 5-pin SOT-23, 8-pin SOIC and 8-pin DFN

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPSPX3819M5-L-2-5#C18212664TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	3,265	₹19.57 · 3,265 in stock	View
SPX3819M5-L-2-5#C23380893TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	10,140	₹16.96 · 10,140 in stock	View
TPMIC5219-2.5YM5#C18212648TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	2,230	₹21.51 · 2,230 in stock	View
MIC5219-2.5YM5-MS#C30197482MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	1,450	₹25.53 · 1,450 in stock	View
LP2985-25DBVR-MS#C30197525MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	2,890	₹21.09 · 2,890 in stock	View
