VISHAYDatasheet (PDF)

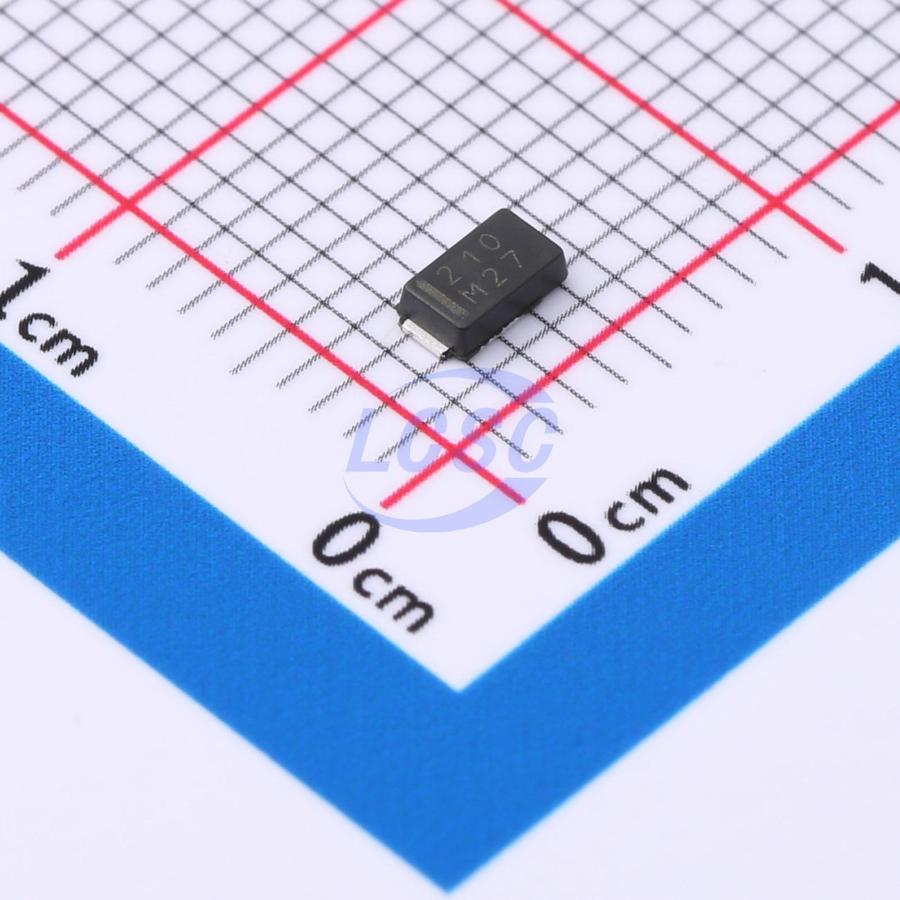

SS2PH10HM3_A/H
Diode 1 Independent 100V 2A Surface Mount DO-220AA
DO-220AAROHS3 CompliantActive
DIODE SCHOTTKY 100V DO-220AA
- Manufacturer
- VISHAY
- Manufacturer part #
- SS2PH10HM3_A/H
- Store part #
- C3037934
- Package / case
- DO-220AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
260 in stock
#C3037934
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.49 | ₹162.45 |
| 50+ | ₹26.09 | ₹1,304.50 |
| 150+ | ₹23.35 | ₹3,502.50 |
| 500+ | ₹19.91 | ₹9,955.00 |
| 3,000+ | ₹16.99 | ₹50,970.00 |
| 6,000+ | ₹16.07 | ₹96,420.00 |
5 × ₹32.49
₹162.45
excl. GST
₹191.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS2PH10HM3_A/H
₹162.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 800mV@2A
- Reverse Leakage Current (Ir)
- 1uA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.059 g
Overview
Applications
- For use in high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Very low profile
- typical height of 1.0mm
- Ideal for automated placement
- Low forward voltage drop, low power losses
- High efficiency
- Low thermal resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/N HM3
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS2PH10-M3/84A#C77393VISHAY · DO-220AA | VISHAY | DO-220AA | 3,480 | ₹28.55 · 3,480 in stock | View |
 | V2P22L-M3/H#C3757426VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 45 | ₹29.40 · 45 in stock | View |
 | V2P22LHM3/H#C3759527VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 395 | ₹40.31 · 395 in stock | View |
| V2PM12LHM3/H#C3759721VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 24 | ₹54.86 · 24 in stock | View | |
 | DFLS2100#C3018522FUXINSEMI · PowerDI-123 | FUXINSEMI | PowerDI-123 | 38,580 | ₹6.03 · 38,580 in stock | View |
