LEADPOWERDatasheet (PDF)

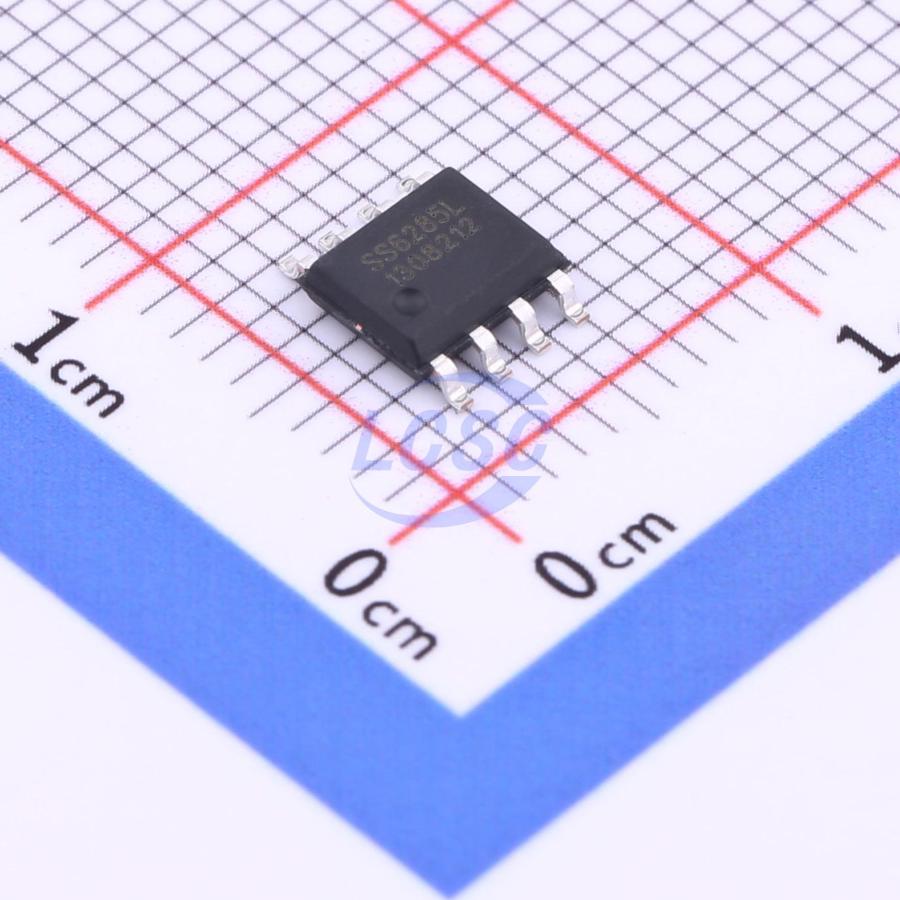

SS6285L-SO-TP
3V~18V SOP-8 Motor Drivers, Controllers RoHS
SOP-8ROHS CompliantActive
Bridge driver IC
- Manufacturer
- LEADPOWER
- Manufacturer part #
- SS6285L-SO-TP
- Store part #
- C3345075
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,290 in stock
#C3345075
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹56.04 | ₹280.20 |
| 50+ | ₹45.31 | ₹2,265.50 |
| 150+ | ₹40.72 | ₹6,108.00 |
| 500+ | ₹30.27 | ₹15,135.00 |
| 2,500+ | ₹27.72 | ₹69,300.00 |
| 4,000+ | ₹26.18 | ₹1,04,720.00 |
5 × ₹56.04
₹280.20
excl. GST
₹330.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SS6285L-SO-TP
₹280.20 for 5 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 3V~18V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 1mA
- Output Current
- 5A
- RDS(on)
- 58mΩ;71mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
SS6285L is a DC bidirectional motor driver IC suitable for toy motor drives, automatic valve motor drives, electromagnetic door lock drives, and similar applications. It features two logic input terminals for controlling motor forward, reverse, and braking operations. The IC offers excellent noise immunity, minimal standby current, and low output on-resistance, along with built-in diodes for suppressing reverse kickback current from inductive loads.
Applications
- Electronic locks
- Toys
- Wireless charging robots
Key features
- Single brushed DC motor drive
- Ultra-low standby current, less than 1uA
- Low RDS(ON) resistance
- Maximum continuous output current 5.0A
- Operating voltage range: 3.0V - 18V
- Emergency stop function
- Over-temperature protection
- Overcurrent limiting and short-circuit protection
- Package: SOP8
