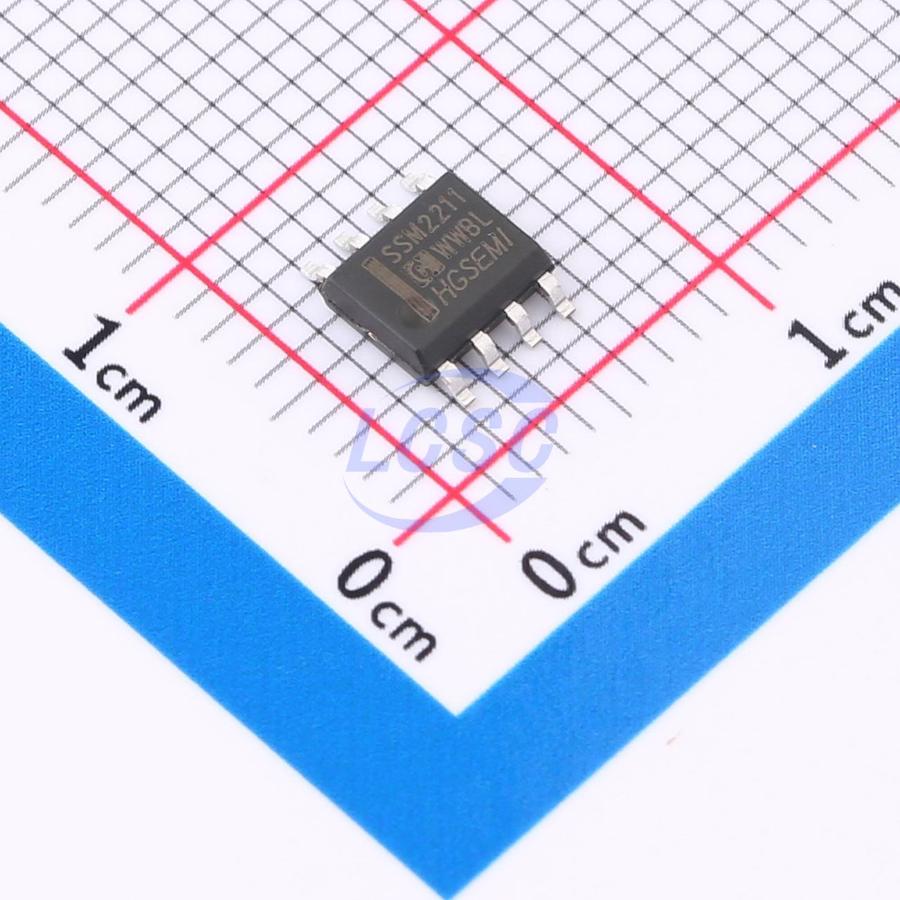

HGSEMI

SSM2211M/TR

2mA 1.9V~5.5V 1-Channel Class AB SOP-8 Audio Amplifiers

SOP-8RoHSActive

3W single-channel Class AB audio power amplifier

Manufacturer: HGSEMI
Manufacturer part #: SSM2211M/TR
Store part #: C48983866
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,977 in stock

#C48983866

Stock & price checked 20 h ago

Quantity	Unit price	Pack price
1+	₹41.52	₹41.52
10+	₹36.29	₹362.90
30+	₹34.12	₹1,023.60
100+	₹31.30	₹3,130.00
500+	₹29.99	₹14,995.00
1,000+	₹29.12	₹29,120.00

Quantity (min 1)

1 × ₹41.52

₹41.52

excl. GST

₹48.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SSM2211M/TR

₹41.52 for 1 + GST

Specifications

Quiescent Current: 2mA
Voltage - Supply: 1.9V~5.5V
Features: Automatic mute/no-noise switch;Enable/shutdown function
Total Harmonic Distortion + Noise (THD+N): 0.08%
Number of Inputs: 1 Pair Differential Inputs
Signal-to-Noise Ratio: 98dB
Speaker Channels: 1-Channel
Output Power: 2.9W×1@4Ω;1.8W×1@8Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 70dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.27 g

Overview

The SSM2211 is a 3W mono Class AB audio power amplifier. It operates from a supply voltage range of 1.9–5.5V in a BTL bridge configuration. At a 5V supply, it delivers an average output power of 3.0W into a 4Ω load with THD less than 10%. In shutdown mode, the typical current consumption is less than 0.5μA. The device is designed to provide ample power and high-fidelity audio output with minimal external components, requiring no output coupling capacitors or bootstrap capacitors. Available in SOP-8 and DFN-8 packages to help save board space, it is well suited for mobile phones and a wide range of portable devices employing low-voltage, low-power solutions.

Applications

Mobile phones
Amplifiers and Bluetooth speakers
Radios
GPS devices and dash cams
Voice toys

Key features

Operating voltage range: 1.9 - 5.5V
Innovative "switching/transition noise" suppression technology eliminates pop-and-click noise during power-up and power-down
Output power up to 2.9W at 10% THD+N, VDD=5V, 4Ω load
Output power up to 1.8W at 10% THD+N, VDD=5V, 8Ω load
Shutdown current less than 0.5μA
Over-temperature protection
Available in SOP-8 and DFN-8 packages
