SiproinDatasheet (PDF)

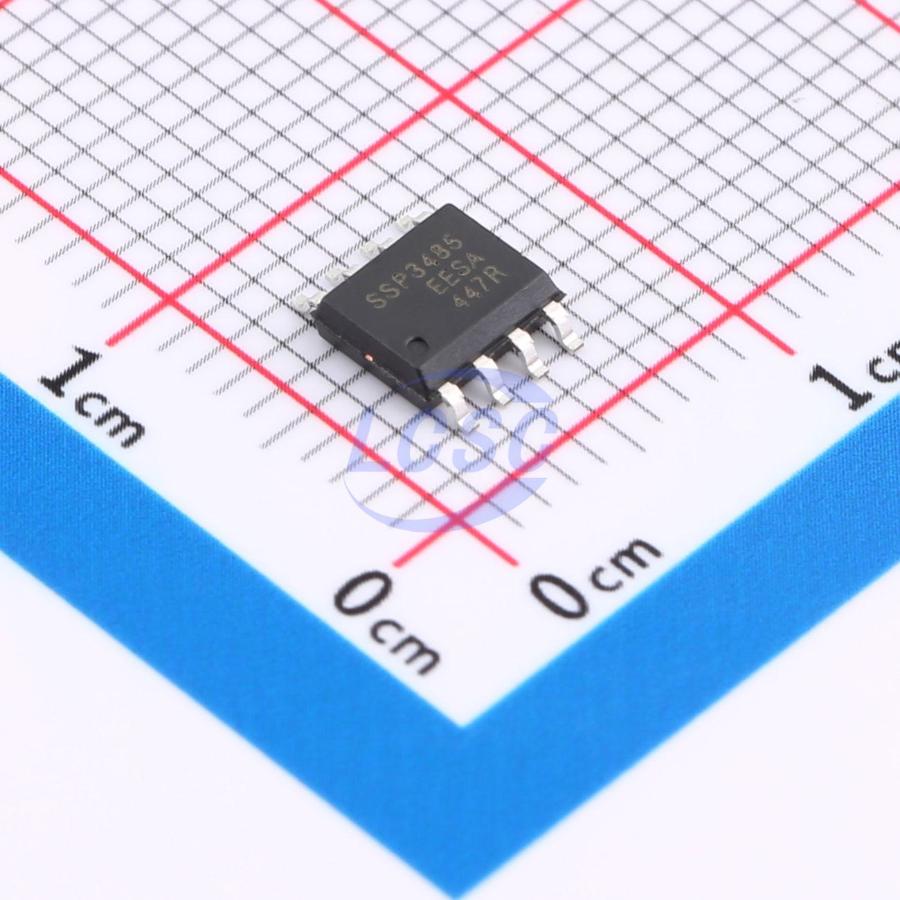

SSP3485
5V Transceiver 10Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
RS-485 transceiver with fail-safe, low slew rate, +15kV ESD protection and 10Mbps transmission rate
- Manufacturer
- Siproin
- Manufacturer part #
- SSP3485
- Store part #
- C2845064
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,100 in stock
#C2845064
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.11 | ₹200.55 |
| 50+ | ₹33.14 | ₹1,657.00 |
| 150+ | ₹30.15 | ₹4,522.50 |
| 500+ | ₹22.54 | ₹11,270.00 |
| 3,500+ | ₹20.88 | ₹73,080.00 |
| 7,000+ | ₹19.88 | ₹1,39,160.00 |
5 × ₹40.11
₹200.55
excl. GST
₹236.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
SSP3485
₹200.55 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 450uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
The SSP3485 is a half- duplex high speed transceiver for RS- 485 and RS422 communication. IC contains one driver and one receiver. The SSP3485 has a fail- safe circuit. It has a slew- rate- limited driver that reduces EMI and reflection due to improperly matched terminal cables, and achieves error- free data transmission of up to 10Mbps. Each driver output and receiver input is protected against ± 15 kV electrostatic discharge (HBM) (ESD) shocks. The SSP3485 receiver has 1/8 unit load input impedance, allows up to 256 devices can be attached to the bus. Mainly used in RS- 485/RS- 422 communication system.
Applications
- Intelligent instrument
- Industrial process control
- Building automation network
- Motor control
- EMI sensitive transceiver application
Key features
- I/O pin ESD protection: +15 kV HBM
- Other pins have level 3 ESD protection: > + 8 kV HBM
- Fractional unit load allows up to 256 devices on the bus
- +5 V operating voltage
- Data transmission up to 10 Mbps
- SOP8 and MSOP8 package
