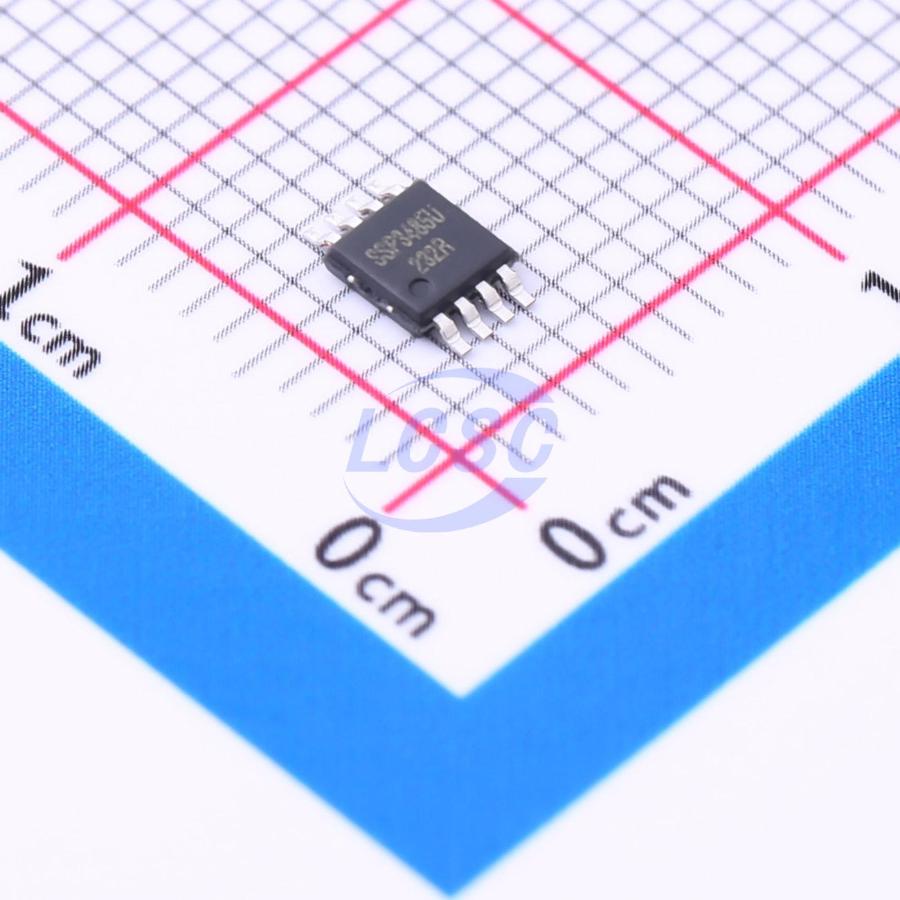

Siproin

SSP3485U

5V Transceiver 10Mbps 256 MSOP-8 Drivers, Receivers, Transceivers

MSOP-8RoHSActive

+15kV ESD Protected、10Mbps Data Rate RS-485

Manufacturer: Siproin
Manufacturer part #: SSP3485U
Store part #: C5199842
Package / case: MSOP-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,410 in stock

#C5199842

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹49.55	₹247.75
50+	₹39.80	₹1,990.00
150+	₹35.62	₹5,343.00
500+	₹28.30	₹14,150.00
2,500+	₹25.97	₹64,925.00
5,000+	₹24.58	₹1,22,900.00

Quantity (min 5, multiples of 5)

5 × ₹49.55

₹247.75

excl. GST

₹292.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

SSP3485U

₹247.75 for 5 + GST

Specifications

Voltage - Supply: 5V
Type: Transceiver
Data Rate: 10Mbps
Operating Temperature: -40℃~+85℃
Number of Nodes: 256
ESD Protect: ±15kV
Communication Mode: Half-Duplex
Number of Drivers: 1
Features: Tx/Rx enable;Enable shutdown
Number of Receivers: 1
Quiescent Supply Current: 1.1mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.1 g

Overview

SSP3485 is a half-duplex high-speed transceiver for RS-485 and RS-422 communications. This IC integrates one driver and one receiver. The SSP3485 features a failsafe circuit and a slew-rate-limited driver that reduces EMI and reflections caused by improperly terminated cables, enabling error-free data transmission at up to 10Mbps. Each driver output and receiver input is protected against ±15kV ESD (HBM) strikes. The SSP3485 receiver features 1/8 unit load input impedance, allowing up to 256 devices to be connected on the bus. Primarily designed for RS-485/RS-422 communication systems.
