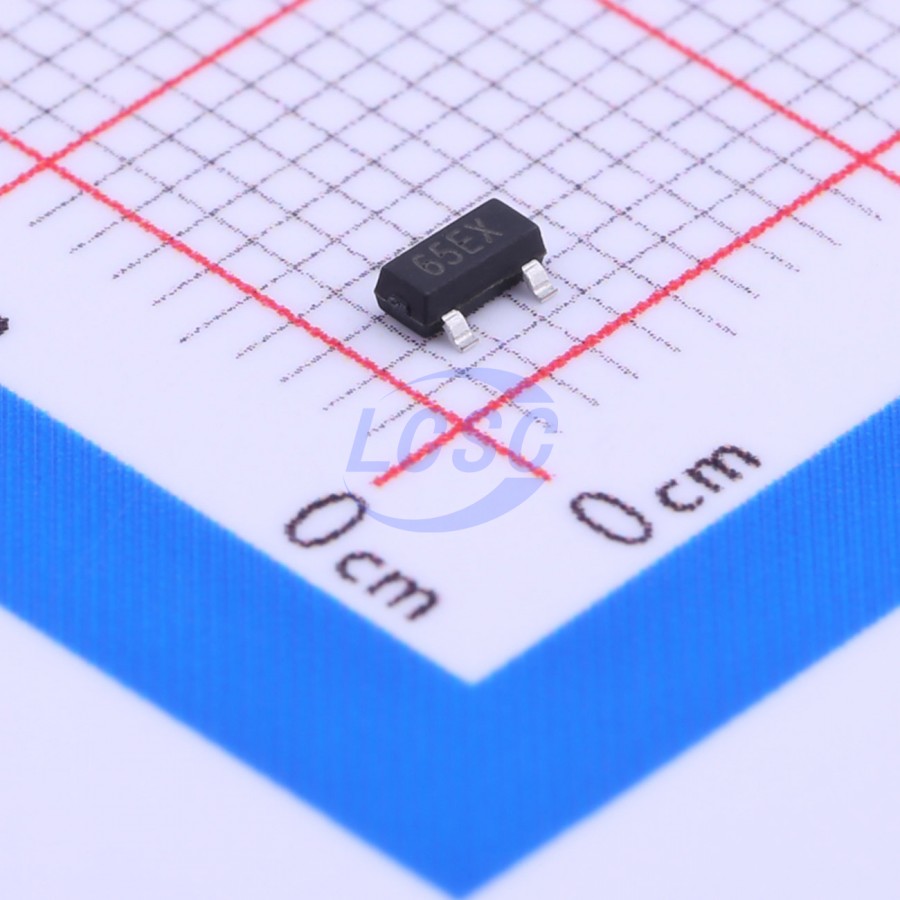

SSP6206-15NR
1.5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
300mA、8V、Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP6206-15NR
- Store part #
- C277877
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,600 in stock
#C277877
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.33 | ₹106.60 |
| 200+ | ₹4.29 | ₹858.00 |
| 600+ | ₹3.77 | ₹2,262.00 |
| 3,000+ | ₹3.12 | ₹9,360.00 |
| 9,000+ | ₹2.80 | ₹25,200.00 |
| 21,000+ | ₹2.65 | ₹55,650.00 |
20 × ₹5.33
₹106.60
excl. GST
₹125.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP6206-15NR
₹106.60 for 20 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Overview
SSP6206 series are a highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The SSP6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. The output voltage can be selected from 1.5V to 3.6V. SSP6206 series are available in SOT-23, SOT23-3 and SOT89 packages.
Applications
- Battery-powered equipment
- Reference voltage sources
- Cameras, video cameras
- Portable AV systems
- Mobile phones
- Portable games
Key features
- Low voltage drop 0.19V @ 100mA
- Low temperature coefficient ±100 ppm/°C
- Low Quiescent Current: 5μA at 6V
- Output voltage accuracy: tolerance ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP6206-15MR#C2845043Siproin · SOT-23-3 | Siproin | SOT-23-3 | 1,540 | ₹8.78 · 1,540 in stock | View |
 | H7605-15MR#C49331822Siproin · SOT-23-3 | Siproin | SOT-23-3 | 2,930 | ₹10.93 · 2,930 in stock | View |
