SiproinDatasheet (PDF)

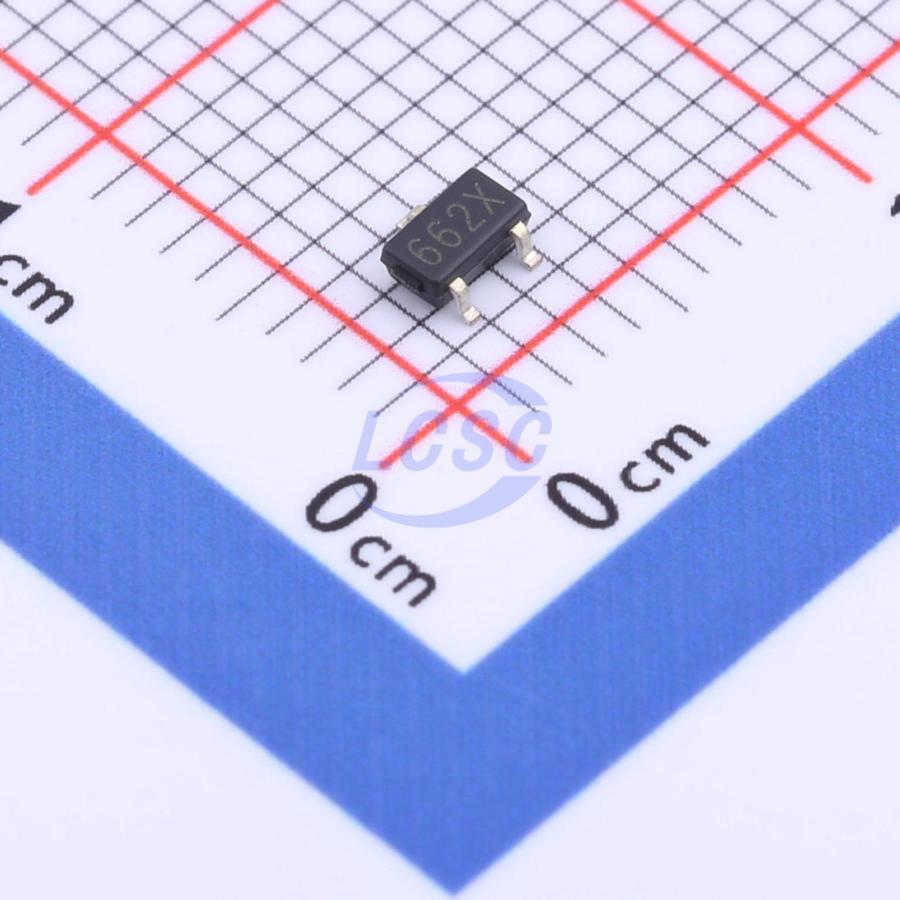

SSP6206-33MR
3.3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
300mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP6206-33MR
- Store part #
- C2845048
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,850 in stock
#C2845048
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.81 | ₹88.10 |
| 100+ | ₹6.99 | ₹699.00 |
| 300+ | ₹6.07 | ₹1,821.00 |
| 3,000+ | ₹5.29 | ₹15,870.00 |
| 6,000+ | ₹4.75 | ₹28,500.00 |
| 9,000+ | ₹4.47 | ₹40,230.00 |
10 × ₹8.81
₹88.10
excl. GST
₹103.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP6206-33MR
₹88.10 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
SSP6206 series are a highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The SSP6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SSP6206 series are available in SOT-23, SOT23-3 and SOT89 packages.
Applications
- Battery-powered equipment
- Portable AV systems
- Reference voltage sources
- Mobile phones
- Cameras, video cameras
- Portable games
Key features
- Low power consumption
- Low Quiescent Current: 3.5uA at 6V
- Low voltage drop
- Output voltage accuracy: tolerance ±2%
- Low temperature coefficient
