SiproinDatasheet (PDF)

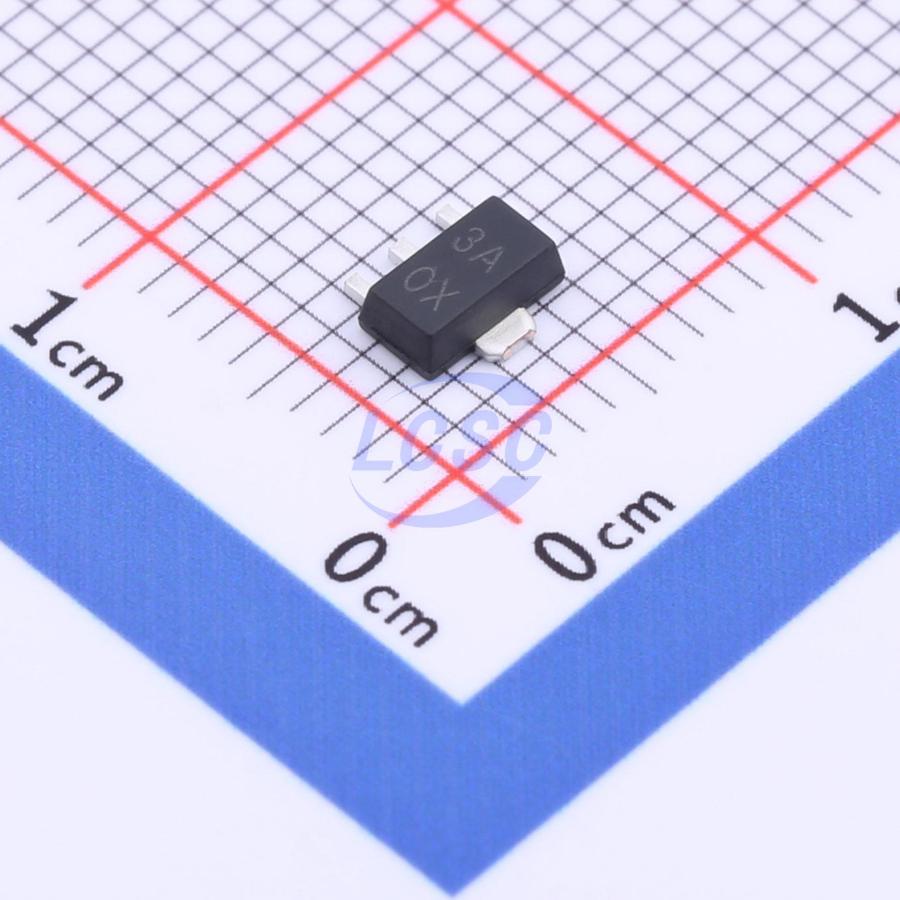

SSP62FJ3002PR
3V Positive Fixed SOT-89-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3LRoHSActive
250mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP62FJ3002PR
- Store part #
- C2845059
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2845059
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.82 | ₹99.10 |
| 50+ | ₹15.56 | ₹778.00 |
| 150+ | ₹13.75 | ₹2,062.50 |
| 1,000+ | ₹11.47 | ₹11,470.00 |
| 2,000+ | ₹10.45 | ₹20,900.00 |
| 5,000+ | ₹9.84 | ₹49,200.00 |
5 × ₹19.82
₹99.10
excl. GST
₹116.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SSP62FJ3002PR
₹99.10 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 350mA
- Operating Voltage
- 13V
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
The SSP62FJ series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SSP62FJ consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT-89-3L packages is available.
Applications
- Battery-powered equipment
- GRS Receivers
- Hand-Hold Equipment
- Wireless LAN
Key features
- Low voltage drop: 0.17V@100mA
- High input voltage: 12V
- Low temperature coefficient
- Large Output Current: >0.35A
- Low Quiescent Current: 1.5uA
- Output voltage accuracy: tolerance ±2%
- Built-in current limiter
- SOT-89-3L package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP7603P30PR#C411024Siproin · SOT-89-3 | Siproin | SOT-89-3 | 220 | ₹16.02 · 220 in stock | View |
 | H7230-1#C277848Siproin · SOT-89-3 | Siproin | SOT-89-3 | 1,210 | ₹17.71 · 1,210 in stock | View |
 | SSP6201P302PR#C330930Siproin · SOT-89-3L | Siproin | SOT-89-3L | 140 | ₹16.34 · 140 in stock | View |
 | SSP7903P30PR#C5199831Siproin · SOT-89-3L | Siproin | SOT-89-3L | 290 | ₹28.62 · 290 in stock | View |
