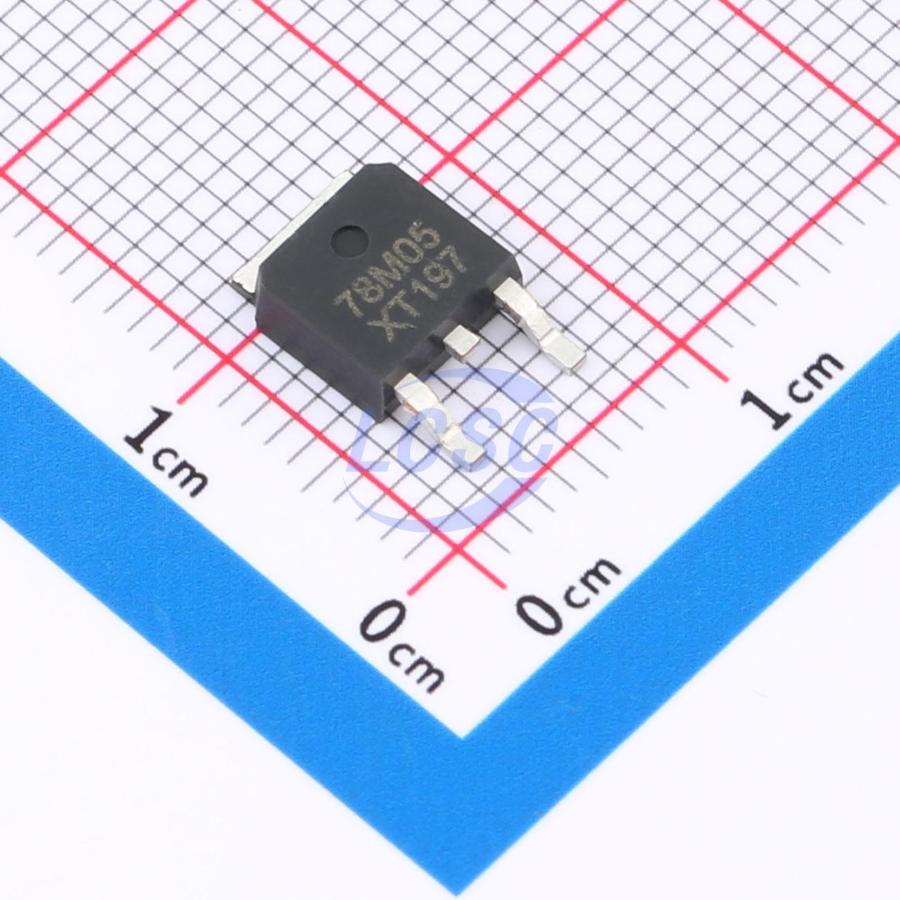

SSP78M05
5V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252RoHSActive
500mA Current 35V Input Voltage LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP78M05
- Store part #
- C411011
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,515 in stock
#C411011
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.91 | ₹89.55 |
| 50+ | ₹13.98 | ₹699.00 |
| 150+ | ₹12.03 | ₹1,804.50 |
| 500+ | ₹10.56 | ₹5,280.00 |
| 2,500+ | ₹9.38 | ₹23,450.00 |
| 5,000+ | ₹8.80 | ₹44,000.00 |
5 × ₹17.91
₹89.55
excl. GST
₹105.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SSP78M05
₹89.55 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Tj)
- Supply Current (Iq)
- 5.5mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 35V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.39 g
Overview
SSP78MXX is three-terminal positive regulators. One of these regulators can deliver up to 500 mA of output current. The internal limiting and thermal-shutdown features of the regulator make them essentially immune to overload. When used as a replacement for a zener diode-resist or Combination, an effective improvement in output impedance can be obtained, together with lower quiescent current.
Key features
- Output Current of 500mA
- Max Input Voltage 35V
- Thermal Overload Protection
- Short Circuit Protection
- Output transistor safe area protection
- No external components
- Package: TO252
- Output voltage accuracy: tolerance ± 5%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP7903P50JR#C5199837Siproin · TO-252 | Siproin | TO-252 | 4,120 | ₹34.25 · 4,120 in stock | View |
