SiproinDatasheet (PDF)

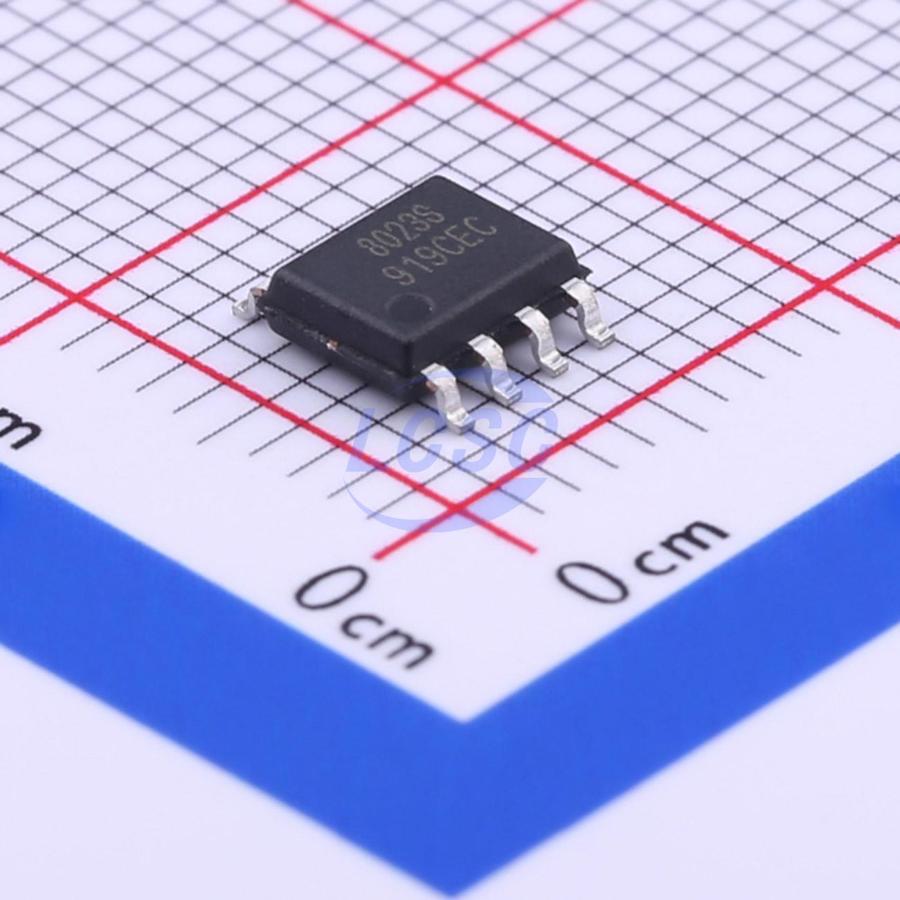

SSP8023D
5V~24V SOP-8 Motor Drivers, Controllers RoHS
SOP-8ROHS CompliantActive
Bi-Direction Relay Driver
- Manufacturer
- Siproin
- Manufacturer part #
- SSP8023D
- Store part #
- C410984
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,420 in stock
#C410984
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.42 | ₹147.10 |
| 50+ | ₹23.40 | ₹1,170.00 |
| 150+ | ₹20.82 | ₹3,123.00 |
| 500+ | ₹17.60 | ₹8,800.00 |
| 2,500+ | ₹16.41 | ₹41,025.00 |
| 4,000+ | ₹15.55 | ₹62,200.00 |
5 × ₹29.42
₹147.10
excl. GST
₹173.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SSP8023D
₹147.10 for 5 + GST
Specifications
- Features
- Bidirectional relay driver
- Voltage - Supply
- 5V~24V
- Operating Temperature
- -40℃~+85℃
- RDS(on)
- 10Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
SSP8023D is a bi-direction relay driver circuit, used to control the DC motor and the magnetic latching relay, with large output capability, ultra-low power consumption. It can be widely used in smart meters and other pulses, level control applications.
Applications
- Smart Meter
- Motor drive
- Magnetic latching relay control
Key features
- Max input voltage: 40V. Limit operating voltage: 30V. Recommended safe working voltage: 5~24V
- Limit operating current: 800mA
- The input high low conversion level is about 1.5V, which is compatible with various microcontrollers
- Integrated high speed continuation diode with built-in reverse voltage function to cancel TVS tubes in general applications
- Typical operating power: 5W
- Limit power: 10W
