SiproinDatasheet (PDF)

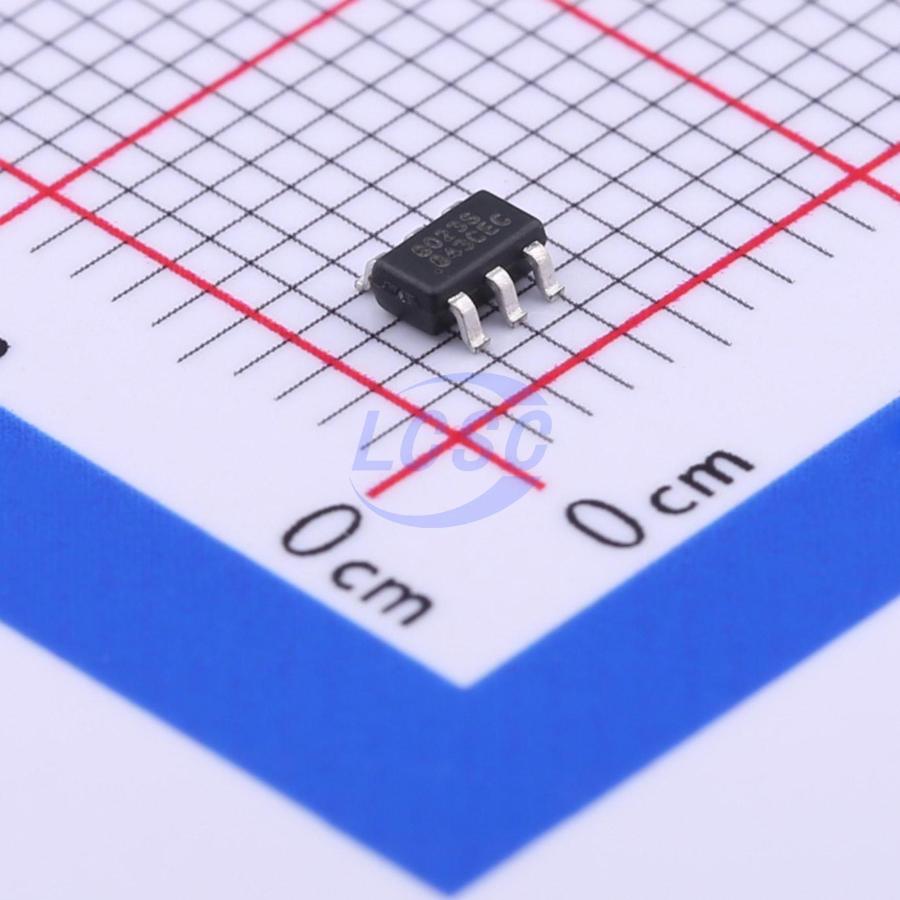

SSP8023D
5V~24V SOT-23-6 Motor Drivers, Controllers RoHS
SOT-23-6ROHS CompliantActive
Bi-Direction Relay Driver
- Manufacturer
- Siproin
- Manufacturer part #
- SSP8023D
- Store part #
- C410985
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,545 in stock
#C410985
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.60 | ₹118.00 |
| 50+ | ₹18.64 | ₹932.00 |
| 150+ | ₹16.52 | ₹2,478.00 |
| 500+ | ₹13.87 | ₹6,935.00 |
| 3,000+ | ₹13.49 | ₹40,470.00 |
| 6,000+ | ₹12.79 | ₹76,740.00 |
5 × ₹23.60
₹118.00
excl. GST
₹139.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP8023D
₹118.00 for 5 + GST
Specifications
- Features
- Bidirectional relay driver
- Voltage - Supply
- 5V~24V
- Operating Temperature
- -40℃~+85℃
- RDS(on)
- 10Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
SSP8023D is a bi-direction relay driver circuit, used to control the DC motor and the magnetic latching relay, with large output capability, ultra-low power consumption. It can be widely used in smart meters and other pulses, level control applications.
Applications
- Smart Meter
- Motor drive
- Magnetic latching relay control
Key features
- Max input voltage: 40V. Limit operating voltage: 30V. Recommended safe working voltage: 5~24V
- Limit operating current: 800mA
- The input high low conversion level is about 1.5V, which is compatible with various microcontrollers
- Integrated high speed continuation diode with built-in reverse voltage function to cancel TVS tubes in general applications
- Typical operating power: 5W
- Limit power: 10W
