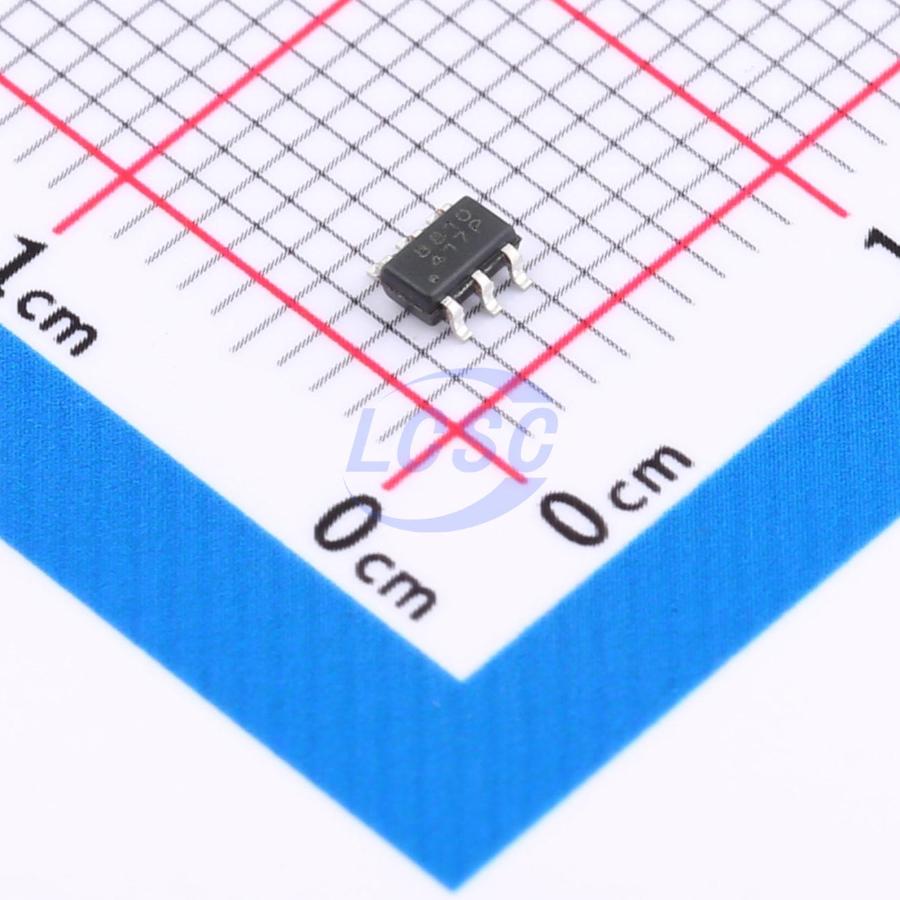

SSP8810M6R
2V~6.8V SOT-23-6 Motor Drivers, Controllers RoHS
Low-voltage H-bridge driver IC
- Manufacturer
- Siproin
- Manufacturer part #
- SSP8810M6R
- Store part #
- C45359457
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C45359457
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.11 | ₹75.55 |
| 50+ | ₹11.87 | ₹593.50 |
| 150+ | ₹10.24 | ₹1,536.00 |
| 500+ | ₹9.04 | ₹4,520.00 |
| 3,000+ | ₹8.06 | ₹24,180.00 |
| 6,000+ | ₹7.57 | ₹45,420.00 |
5 × ₹15.11
₹75.55
excl. GST
₹89.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP8810M6R
₹75.55 for 5 + GST
Specifications
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 2V~6.8V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 100nA
- Output Current
- 1A
- RDS(on)
- 370mΩ;470mΩ;390mΩ;490mΩ;220mΩ;320mΩ;240mΩ;340mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
SSP8810 is a low-voltage DC motor driver IC designed specifically for low-voltage operating systems. It integrates 4 low-resistance MOSFETs with forward, reverse, brake, and stop functions. The SSP8810 features built-in thermal protection: when an output short circuit occurs, the output current surges instantaneously, causing a sharp rise in circuit power dissipation and chip temperature. Once the chip temperature exceeds the maximum threshold set by the internal thermal protection circuit, the internal circuitry shuts down the built-in power switching transistors to cut off the load current.
Applications
- Consumer products
- Water and gas meter products
- Toys
- Electric toothbrushes
Key features
- Operating voltage range: 2.0 - 6.8V
- Low operating current (typ. 38μA (@3.6V))
- Low standby current (typ. 0.1μA)
- Continuous operating current 1.0A
- Thermal protection with integrated hysteresis
- Packages: DFN8 (2x2), SOP8, SOT23-6
