Siproin

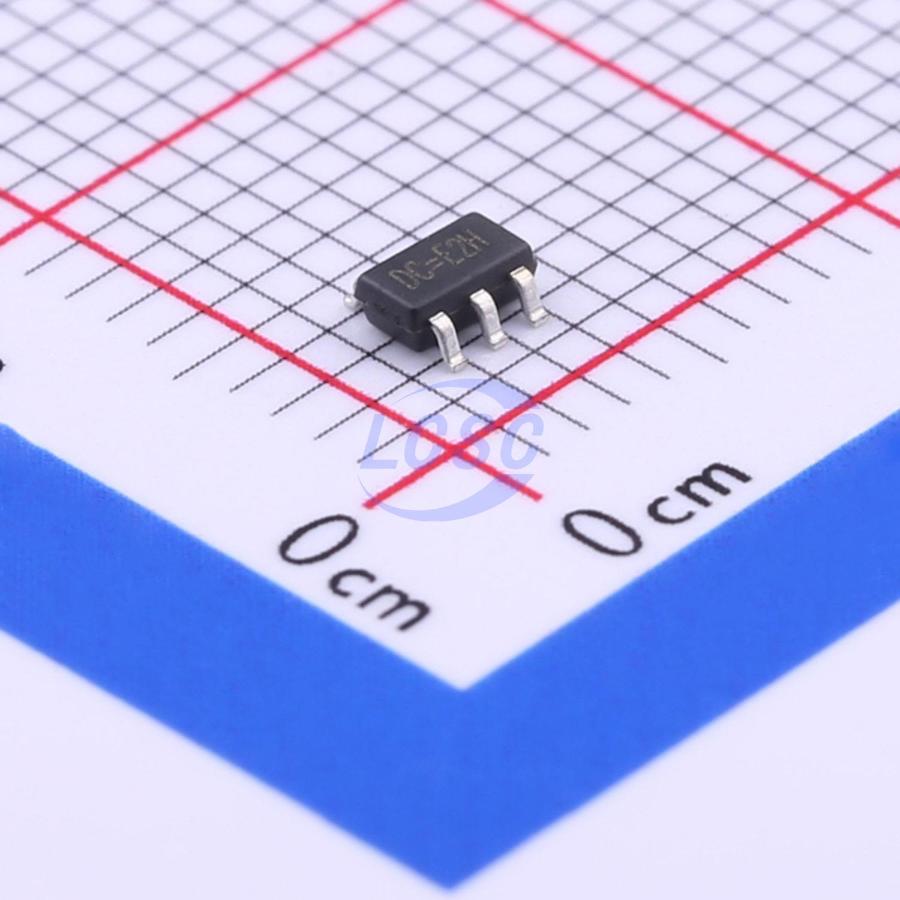

SSP9193-18M5R

1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

High Speed Low Noise LDO

Manufacturer: Siproin
Manufacturer part #: SSP9193-18M5R
Store part #: C411020
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,410 in stock

#C411020

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
10+	₹9.45	₹94.50
100+	₹7.46	₹746.00
300+	₹6.47	₹1,941.00
3,000+	₹5.61	₹16,830.00
6,000+	₹5.01	₹30,060.00
9,000+	₹4.72	₹42,480.00

Quantity (min 10, multiples of 10)

10 × ₹9.45

₹94.50

excl. GST

₹111.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SSP9193-18M5R

₹94.50 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.8V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 30uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 400mA
Features: Enable control;Noise bypass terminal;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.023 g

Overview

The SSP9193 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the SSP9193 series is ideal for today’s cutting edge mobile phone. Internally the SSP9193 includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators. The SSP9193’s current limiters' feedback circuit also operates as a short protect for the output current limiter and the output pin. The output voltage is set by current trimming. Voltages are selectable in 100mV steps within a range of 1.2V to 5.0V. The SSP9193 series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption.

Applications

Battery-powered equipment
Portable games
Communication equipment
Cameras, Video cameras
Mobile phones
Reference voltage sources

Key features

Low power consumption: 30uA (Typ.)
Low voltage drop: 0.06V@100mA (Typ.)
Build-in Enable/Output Current Limit circuit
High Ripple Rejection: 70dB@10kHz (Typ.)
Output Voltage Range: 1.2V ~ 5V
Output voltage accuracy: tolerance ±2%
High input voltage (up to 5.5V)
Standby Mode: Typ. < 0.01uA
Low temperature coefficient
Low output noise (100uVRMS)
SOT23-5 package
